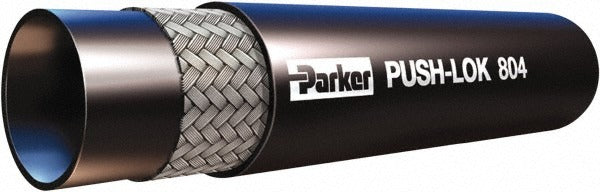

Parker 804-12-RL Push-on Air Hose 3/4 Inch Id 150 Psi

Product Description

The PARKER 804-12-RL is a push-on air hose designed for compressed air distribution in industrial and trade service environments. Constructed from synthetic rubber, it handles working pressures up to 150 psi and operates across a temperature range of -40 to 158 degrees F. The 3/4 inch inside diameter accommodates high-volume air flow demands common in shop and jobsite applications. The hose ships as cut-to-length stock from a 200-foot coil, sold in 1-foot increments with a 20-foot minimum cut. Licensed HVAC technicians, pipefitters, and general contractors install this type of hose as part of compressed air distribution systems.

This hose is suited for workshop air lines, compressor drop lines, and light industrial pneumatic circuits where a flexible, rubber push-on connection is preferred over rigid pipe. The push-on fitting style eliminates the need for clamps or crimp tooling at the connection point, speeding up installation in both fixed and temporary air supply setups. The black synthetic rubber construction resists ozone and weathering, making it appropriate for both indoor and outdoor service runs.

Key Features

• Push-on design requires no clamps or crimp tooling for assembly
• 3/4 inch inside diameter suits high-volume compressed air distribution
• 150 psi working pressure rating for standard shop and jobsite air systems
• Wide service temperature range of -40 to 158 degrees F
• Synthetic rubber construction resists ozone and weathering
• Available cut-to-length from a 200-foot coil in 1-foot increments (20-foot minimum)

Compatibility

Designed as a cut-to-length replacement or new-installation push-on air hose for compressed air systems requiring a 3/4 inch ID rubber hose rated to 150 psi.

Installation Notes

Installation should be performed by a qualified pipefitter, HVAC technician, or mechanical contractor familiar with compressed air system requirements. Depressurize and lock out the air supply before cutting, fitting, or replacing any section of hose. Verify that all push-on fittings are fully seated and rated for the system working pressure before returning the line to service. Local mechanical codes may apply to compressed air distribution installations in commercial or industrial facilities.
