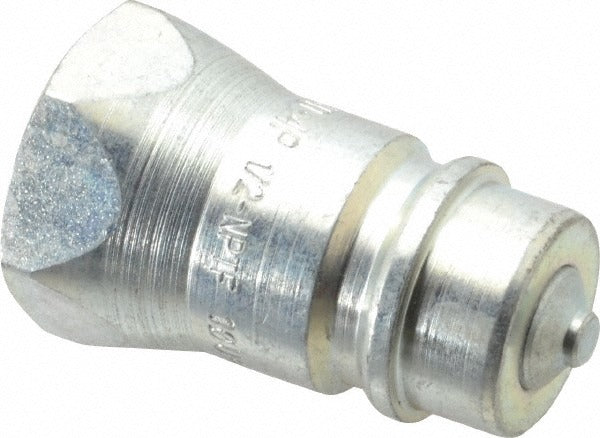

Parker 8010-4P Poppet Female Pipe Thread Nipple 3000 Psi

Product Description

The PARKER 8010-4P is a poppet-style female pipe thread nipple designed for hydraulic hose assemblies operating at up to 3,000 psi. Built from steel with an NPTF threaded connection, this straight fitting seals at the thread flanks to prevent leakage under pressure without the need for additional sealant tape in most applications. The 8010-4P is part of Parker's 8010 series, rated for a maximum flow rate of 12.00 GPM. With a body diameter of 1/2 inch and an overall length of 1.95 inches, it is a compact, heavy-duty component suited to industrial and mobile hydraulic circuits. Licensed hydraulic technicians and fluid-power specialists are the primary installers.

This fitting is used in hydraulic hose connections where a female pipe thread nipple is required on the hose end. The 1/2 inch hose size and 1/2 inch NPTF thread size make it a standard choice for mid-range hydraulic lines in construction equipment, agricultural machinery, industrial presses, and mobile hydraulic systems. It is suited for both OEM assembly and field repair applications where a straight, poppet-style quick-disconnect nipple is specified.

Key Features

• Maximum working pressure of 3,000 psi for demanding hydraulic service
• NPTF threaded connection for reliable, leak-resistant sealing at thread flanks
• Maximum flow rate of 12.00 GPM to support mid-range hydraulic circuits
• Straight configuration for direct in-line hose-to-port connections
• Steel construction for durability in high-pressure hydraulic environments
• Compliant with ISO 5675 standards

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring a 1/2 inch poppet female pipe thread nipple with NPTF connection, as part of the Parker 8010 series.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid-power specialist. Depressurize and fully relieve all hydraulic system pressure before removing or installing any fitting. Inspect threads for damage before assembly and ensure mating components are clean and free of debris. Torque to the system manufacturer's specified value using the appropriate crowfoot or open-end wrench — do not over-tighten NPTF fittings.
