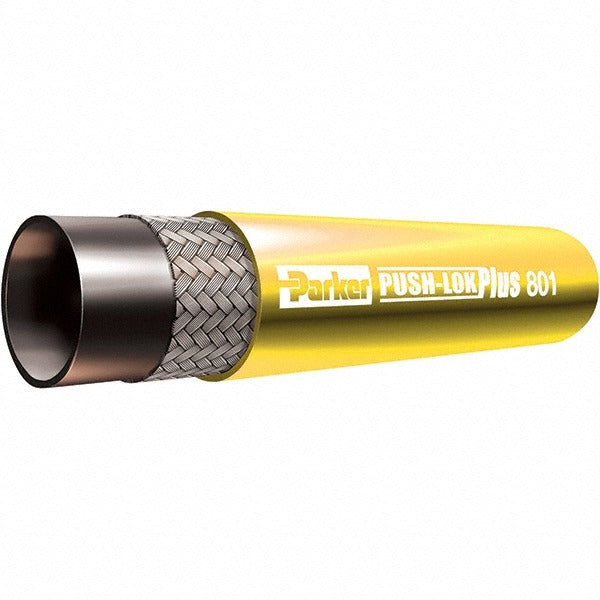

Parker 801-10-YEL-RL Push-on Air Hose 5/8 in 300 Psi

Product Description

The PARKER 801-10-YEL-RL is a push-on air hose designed for compressed air distribution in industrial, mechanical, and trades applications. Constructed from yellow synthetic rubber, this hose carries a 300 psi working pressure rating and handles a wide temperature range from -40 degrees F to 257 degrees F. The inside diameter measures 5/8 inches with an outside diameter of 0.91 inches. It is sold in 1-foot increments cut from a 250-foot coil, with a 20-foot minimum cut length per order. Licensed plumbers, pipefitters, HVAC technicians, and industrial mechanics are the primary installers of this type of hose in both shop and field setups.

This push-on air hose suits residential and commercial compressed air systems where a flexible, cut-to-length solution is needed. The push-on construction eliminates the need for clamps or ferrules at the fitting connection, making field assembly faster in pneumatic tool lines, compressor drops, and air distribution manifolds. The 15 in-Hg vacuum rating also allows use in low-vacuum service. No end connections are pre-installed; the hose ships as a raw cut length ready for field-installed push-on fittings.

Key Features

• 300 psi working pressure suits most shop-air and field compressed air systems
• Temperature range of -40 degrees F to 257 degrees F covers extreme ambient and process conditions
• 5/8 inch ID with 0.91 inch OD for compatibility with standard push-on fittings
• Yellow synthetic rubber construction provides visibility and oil resistance
• 15 in-Hg vacuum rating allows use in light vacuum applications
• Sold in 1-foot increments from a 250-foot coil, 20-foot minimum cut length per order

Compatibility

Designed for use with standard push-on air fittings sized for 5/8 inch ID hose. No specific system or OEM model compatibility is stated by the manufacturer for this cut-to-length hose.

Installation Notes

Installation should be performed by a qualified mechanic, pipefitter, or HVAC technician familiar with compressed air system assembly. De-pressurize and lock out the air supply before cutting or connecting hose. Push-on hose requires properly sized push-on fittings; inspect the fitting barb for burrs or damage before seating the hose to ensure a secure, leak-free connection. Follow applicable OSHA and local codes for compressed air line installation and maximum allowable working pressure.
