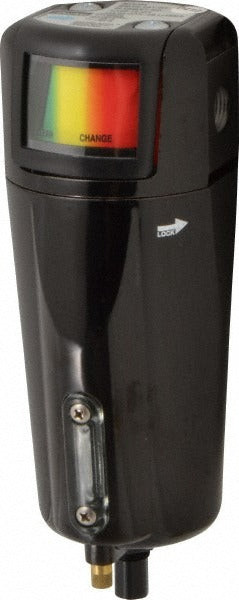

Parker 8003N-1A1-DX Oil Water Filter Separator 63 Cfm

Product Description

The PARKER 8003N-1A1-DX is a compressed air oil-water filter and separator designed to remove dust, oil aerosols, particulate, and liquid water from pneumatic system supply lines. Rated for 63 CFM flow capacity with a maximum working pressure of 250 psi and a maximum operating temperature of 130 degrees F, this unit handles the contaminant loads typical in commercial and industrial compressed air systems. The 3/8 NPT end connections make for straightforward inline installation, and the automatic drain eliminates manual condensate management between service intervals. Licensed HVAC technicians, pipefitters, and industrial maintenance professionals are the primary installers of this type of inline filter-separator.

This filter-separator is suited for point-of-use and main-line compressed air filtration applications where moisture, oil carryover, and particulate contamination must be controlled before reaching downstream tools, pneumatic controls, or instrumentation. Typical installations include compressor discharge lines, pneumatic control panels, spray equipment supply lines, and air-actuated valve assemblies in light commercial and industrial environments. The compact footprint — 8.5 inches high and 3.3 inches wide — allows installation in tight equipment rooms or panel enclosures where space is limited.

Key Features

• 63 CFM rated flow capacity for reliable performance in mid-range compressed air systems
• 250 psi maximum working pressure for compatibility with standard industrial compressor outputs
• Automatic drain removes accumulated condensate without manual intervention
• 3/8 NPT end connections for direct inline pipe fitting with standard compressed air plumbing
• Handles dust, oil aerosols, particulate, and liquid water in a single housing
• Compact 8.5 inch by 3.3 inch envelope fits space-constrained installations

Compatibility

Designed as an OEM-style inline filter-separator for compressed air systems using 3/8 NPT plumbing connections with flow demands at or below 63 CFM and operating conditions within 250 psi and 130 degrees F.

Installation Notes

Installation should be performed by a qualified pipefitter or instrumentation technician familiar with compressed air system safety practices. Depressurize and lock out the air supply line before making any connections. Follow applicable mechanical codes and the compressor manufacturer guidelines for inline accessory installation. Mount the unit in the correct flow direction as indicated on the housing, and verify the automatic drain is oriented downward and unobstructed for proper condensate discharge.
