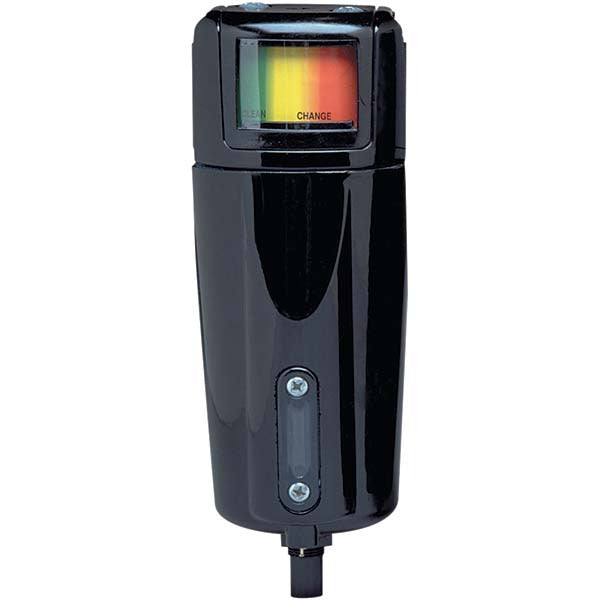

Parker 8002N-1A1-BX Oil Water Separator 25 Cfm Auto Drain

Product Description

The PARKER 8002N-1A1-BX is a compressed air oil-water separator and filter designed to remove dust, oil, particulate, and liquid water from compressed air lines. Rated at 25 CFM with a maximum working pressure of 250 psi, it handles the demands of typical shop and industrial pneumatic systems. The auto-drain eliminates manual blowdown intervals, reducing maintenance time on active air lines. Connections are 1/4-inch NPT, and the unit measures 8.5 inches high by 3.3 inches wide. Licensed HVAC, plumbing, and mechanical contractors install this type of separator ahead of pneumatic controls, air tools, and downstream filtration equipment to protect system components from moisture and oil carryover.

This separator is suited for light commercial and industrial compressed air applications where moisture and oil contamination must be removed before air reaches tools, controls, or process equipment. Typical installations include upstream protection for pneumatic actuators, spray systems, air-operated controls, and instrument air drops. The auto-drain function makes it practical for installations where manual servicing access is limited. Maximum operating temperature is 130 degrees F, making it appropriate for standard ambient and mildly elevated temperature environments found in mechanical rooms, equipment bays, and shop floors.

Key Features

• 25 CFM flow capacity for light to medium compressed air demand
• Auto-drain eliminates manual blowdown and reduces routine maintenance
• 250 psi maximum working pressure suits standard shop compressor systems
• 1/4-inch NPT end connections for direct inline installation
• Removes dust, oil, particulate, and liquid water from compressed air
• Compact footprint at 8.5 inches high and 3.3 inches wide

Compatibility

Designed as an OEM-style inline oil-water separator for compressed air systems using 1/4-inch NPT connections with flow requirements up to 25 CFM and operating pressures up to 250 psi.

Installation Notes

Installation is typically performed by a licensed mechanical or industrial contractor. Depressurize and lock out the compressed air system before installing or servicing this unit. Mount the separator in the correct flow direction as indicated on the body, and ensure NPT threads are sealed with appropriate thread sealant per applicable mechanical codes. Verify the auto-drain outlet is directed to a suitable collection point to capture discharged condensate and oil.
