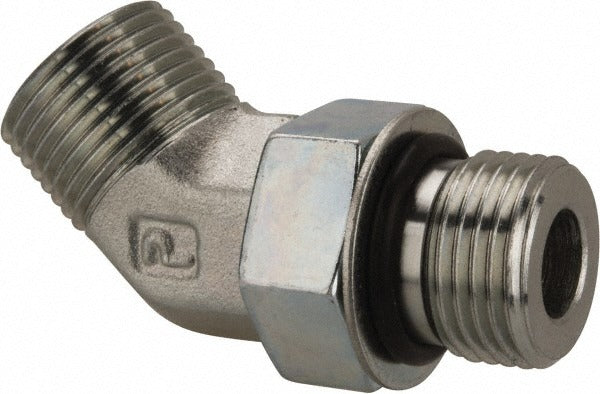

Parker 8 V5OLO-S Male 45 Elbow Fitting 3/4-16 Orfs Sae-orb

Product Description

The PARKER 8 V5OLO-S is a compression tube male 45-degree elbow fitting designed for high-pressure hydraulic and fluid power systems. It connects an O-Ring Face Seal (ORFS) tube end to an SAE O-Ring Boss (SAE-ORB) port, providing a leak-resistant seal at both connection points. Constructed from zinc-plated steel, this fitting handles working pressures up to 6000 psi. The 45-degree angle allows routing of tubing in tight or angled installations where a straight fitting will not work. Licensed plumbers, hydraulic technicians, and fluid power specialists are the typical installers of this fitting in industrial and mobile equipment applications.

This fitting is used in hydraulic plumbing circuits where a tube line must transition to an SAE-ORB threaded port at a 45-degree angle. Common applications include mobile hydraulic equipment, industrial machinery, and fluid power assemblies requiring ORFS-to-ORB connections. The 3/4-16 UNF thread size and 1/2-inch tube outside diameter make it a standard choice for mid-range hydraulic line routing. It is sold individually and ships as a single-piece package.

Key Features

• 45-degree male elbow configuration for angled tube routing in confined spaces
• ORFS x SAE-ORB end connections provide a dual O-ring sealed, leak-resistant assembly
• Rated to 6000 psi maximum working pressure for demanding hydraulic circuits
• Zinc-plated steel construction offers corrosion resistance in typical service environments
• 3/4-16 UNF thread standard for compatibility with SAE-ORB ported components
• 1/2-inch tube outside diameter for proper compression tube fitment

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and fluid power systems requiring an ORFS tube connection to an SAE-ORB threaded port at a 45-degree angle.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Inspect O-rings for damage before assembly and replace if necessary. Follow applicable industry standards for hydraulic fitting installation, including proper lubrication of O-rings and hand-tightening before final torque to avoid cross-threading.
