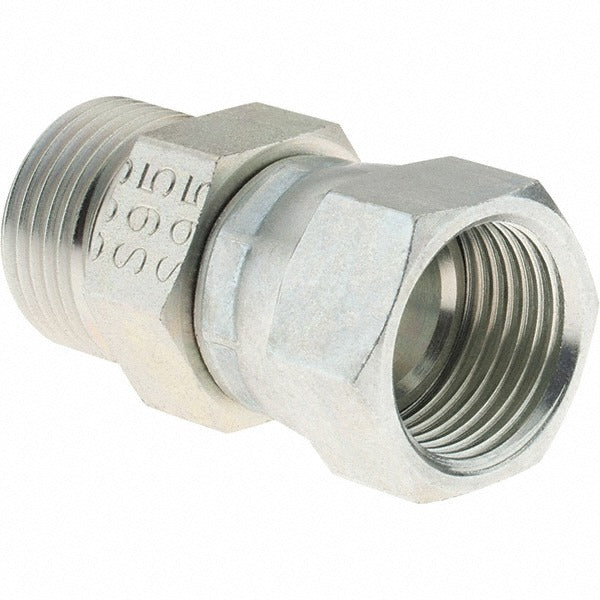

Parker 8 LOHX6-S Steel Tube Adapter 1/2 in Od Orfs 5000 Psi

Product Description

The PARKER 8 LOHX6-S is a steel flared tube adapter designed for high-pressure hydraulic and fluid power plumbing connections. It features a Female Flare Swivel end on one side and an O-Ring Face Seal (ORFS) end on the other, allowing a reliable transition between these two common connection types. The adapter accepts a 1/2-inch tube OD with a 37-degree flare angle per SAE J514 and ISO 8434-2 standards. Rated for up to 5000 psi dynamic working pressure and a maximum working temperature of 500 degrees F, this fitting is built for demanding industrial, mobile equipment, and hydraulic system applications. Licensed fluid power mechanics and hydraulic technicians are the primary installers.

This adapter is used wherever a Female Flare Swivel line must connect to an ORFS port on valves, pumps, cylinders, or manifolds. Typical install scenarios include mobile hydraulic systems, industrial machinery, and construction equipment. The swivel feature on the flare end allows for easier assembly and helps eliminate cross-threading and installation torque issues. It is sold and packaged individually and is appropriate for both new builds and field repair work.

Key Features

• Female Flare Swivel x ORFS end connections for reliable cross-type hydraulic plumbing
• 37-degree flare angle conforming to SAE J514 and ISO 8434-2 standards
• 5000 psi maximum dynamic working pressure
• Rated to 500 degrees F maximum working temperature
• Steel construction for durability in high-pressure hydraulic service
• Swivel flare end simplifies assembly and reduces installation stress on fittings

Compatibility

Designed as an OEM-style replacement or new-installation adapter for hydraulic systems requiring a 1/2-inch OD, 37-degree Female Flare Swivel to ORFS connection in compliance with SAE J514 and ISO 8434-2 standards.

Installation Notes

Installation should be performed by a qualified fluid power mechanic or hydraulic technician. Depressurize and isolate the hydraulic circuit completely before disconnecting any fittings. Inspect the ORFS O-ring and mating face for damage before assembly, and replace the O-ring if any wear or distortion is present. Follow SAE J514 torque and assembly procedures for flared fittings to ensure a leak-free connection.
