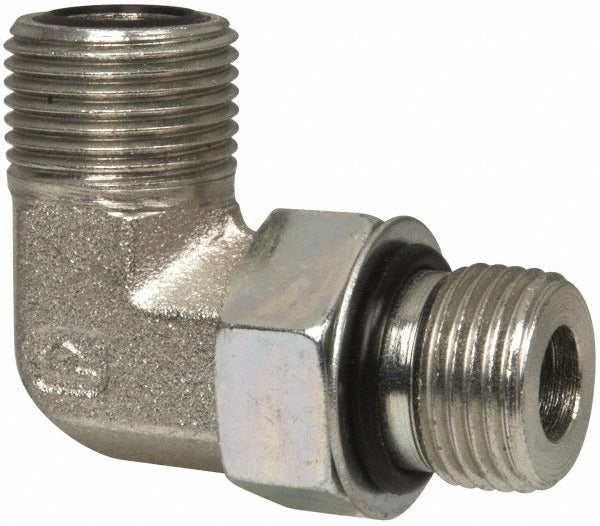

Parker 8 C5OLO-S Compression Tube Male Elbow Orfs Sae-orb

Product Description

The PARKER 8 C5OLO-S is a compression tube male elbow fitting designed for high-pressure hydraulic and fluid-power lines. It connects a 1/2-inch outside diameter tube to a male O-Ring Face Seal port on one end and an SAE O-Ring Boss port on the other, creating a reliable, leak-resistant 90-degree directional change in the line. Constructed from zinc-plated steel, the fitting is rated to 6000 psi working pressure. The 3/4-16 UNF thread standard ensures a precise fit at the SAE-ORB port. This fitting is installed by hydraulic technicians, plumbers, and industrial maintenance professionals working on medium- to high-pressure fluid systems.

This fitting is suited for use in hydraulic systems, industrial fluid-power circuits, and mobile equipment plumbing where a tube-to-port elbow transition is required. It is appropriate for both OEM assembly and field repair applications. The ORFS end provides a face-seal connection that resists vibration-induced leakage, making it a practical choice in systems subject to movement or pressure cycling. Package quantity is one piece per order.

Key Features

• 6000 psi maximum working pressure for demanding hydraulic applications
• ORFS x SAE-ORB end connections provide a dual-standard, leak-resistant elbow transition
• 3/4-16 UNF thread size on the SAE-ORB port end
• 1/2-inch tube outside diameter on the compression end
• Zinc-plated steel construction for corrosion resistance in industrial environments
• Compact male elbow design routes lines in tight spaces without additional adapters

Compatibility

Designed as an OEM-style replacement or field-repair fitting for hydraulic and fluid-power systems requiring a 1/2-inch OD compression tube connection to a 3/4-16 UNF SAE O-Ring Boss port.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect O-ring sealing surfaces for nicks or contamination before assembly, and replace O-rings if damaged. Follow SAE J1453 and applicable system manufacturer torque and assembly guidelines for ORFS and SAE-ORB connections.
