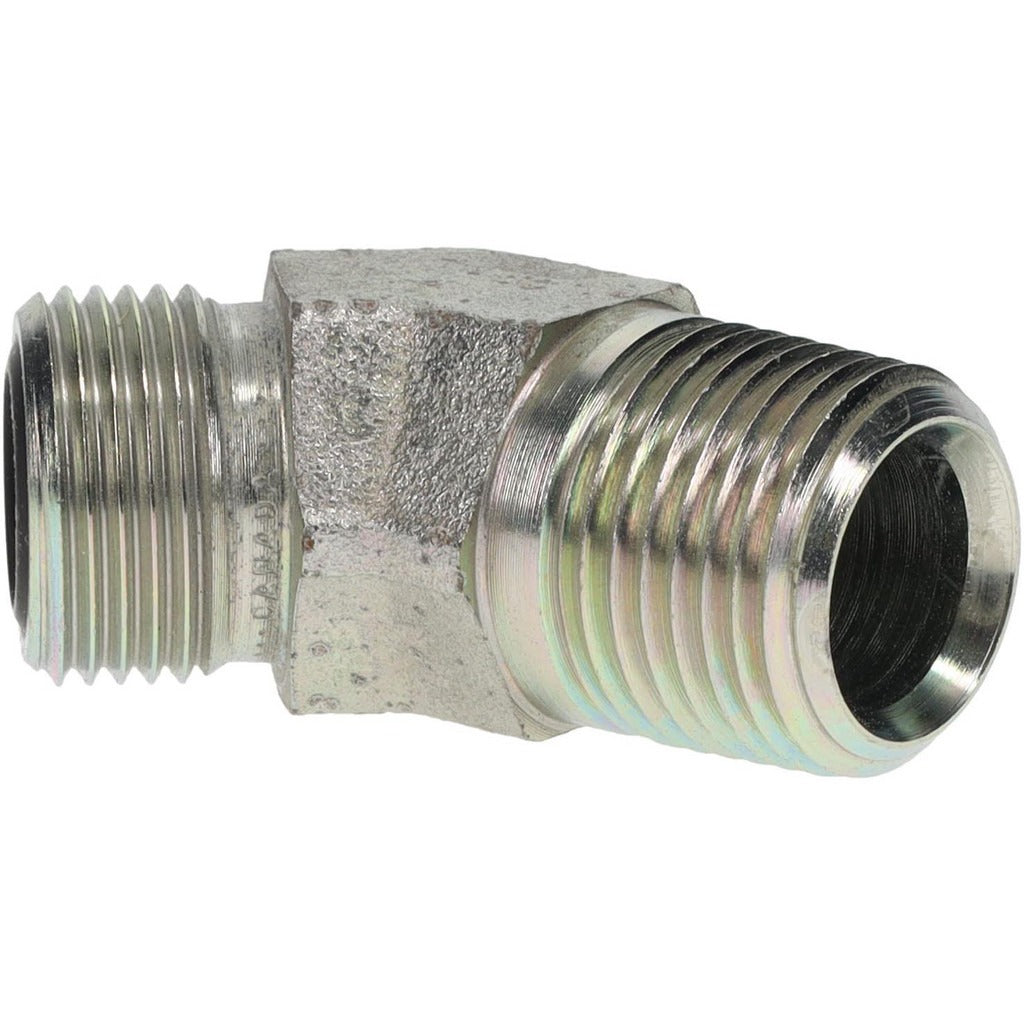

Parker 8-8 Vlo-s 45 Degree Male Elbow Orfs X Nptf 6000 Psi

Product Description

The PARKER 8-8 VLO-S is a 45-degree male elbow compression tube fitting designed for hydraulic and fluid system plumbing where a directional change at 45 degrees is required. It connects a 1/2-inch outside diameter tube to a 1/2-14 NPTF male thread using an O-Ring Face Seal (ORFS) tube end, delivering a leak-resistant connection rated to 6000 psi maximum working pressure. The body is zinc-plated steel, providing corrosion resistance in industrial and mobile hydraulic environments. This fitting is installed by hydraulic technicians, pipefitters, and fluid power specialists working on high-pressure line assemblies.

This fitting is suited for high-pressure hydraulic circuits in industrial machinery, mobile equipment, and fluid power systems where a compact 45-degree elbow transition is needed. The ORFS end provides a metal-to-metal face seal with an O-ring, making it a preferred choice in systems where vibration or pressure spikes demand a reliable, leak-free connection. It is sold individually and is appropriate for new installations and field repairs.

Key Features

• 45-degree male elbow configuration for directional routing in tight hydraulic plumbing layouts
• ORFS x NPTF end connections for leak-resistant, high-pressure hydraulic line assemblies
• 6000 psi maximum working pressure rating
• 1/2-inch tube outside diameter with 1/2-14 NPTF thread size
• Zinc-plated steel construction for corrosion resistance in industrial service

Compatibility

Designed as an OEM-style replacement or new-install fitting for hydraulic and fluid power systems requiring a 1/2-inch OD tube ORFS connection to a 1/2-14 NPTF male port.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the O-ring and sealing face for damage prior to assembly, and ensure the NPTF threads are clean and free of debris. Follow applicable fluid power system standards and the equipment manufacturer's torque and assembly guidelines for ORFS fittings.
