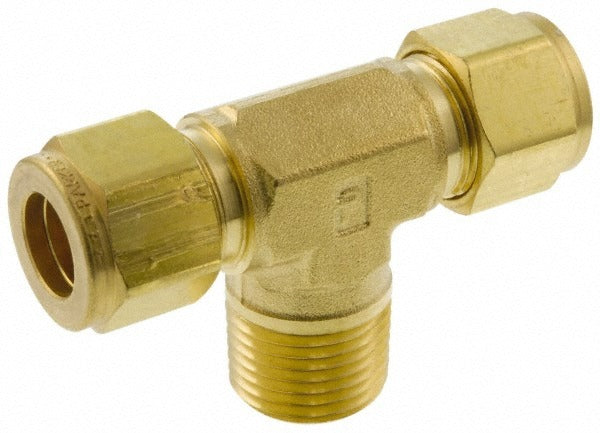

Parker 8-8-8 Sbz-b Compression Male Branch Tee 1/2 in

Product Description

The PARKER 8-8-8 SBZ-B is a brass male branch tee fitting designed for compression tube connections in fluid and gas distribution systems. It features a Compression x Compression x MNPT end configuration, allowing two compression tube connections to branch off a male pipe thread port. The fitting is rated to 2,200 psi maximum working pressure and is manufactured from brass to ASTM-B-453 and ASTM-B16 standards. Licensed plumbers, pipefitters, and HVAC technicians use this type of fitting where a branch takeoff is required without additional adapters. The overall length is 2.86 inches and the thread size is 1/2 inch MPT.

This fitting is suited for residential and light commercial plumbing, HVAC refrigerant line accessories, instrumentation tubing, and compressed air or gas distribution. It is commonly installed in panel assemblies, manifold systems, and anywhere a tee branch from a compression tube run to a male pipe thread port is required. Its high working pressure rating makes it appropriate for demanding fluid system applications where leak-free performance is critical.

Key Features

• Compression x Compression x MNPT end connections for flexible installation configurations
• 2,200 psi maximum working pressure for demanding fluid and gas applications
• Brass construction per ASTM-B-453 and ASTM-B16 for corrosion resistance and durability
• 1/2 inch MPT thread size for standard pipe compatibility
• 2.86 inch overall length for compact installation in tight spaces

Compatibility

Designed as an OEM-style replacement and direct-fit compression branch tee for plumbing, HVAC, and instrumentation tubing systems using 1/2 inch male pipe thread connections. Cross-references to Swagelok part number B-810-3-8TTM.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with compression fitting assembly procedures. De-pressurize and isolate the line before disassembly or installation. Compression fittings require proper tube preparation including square cuts and deburring to achieve a leak-free seal. Do not overtighten the compression nut, as this can deform the ferrule and compromise the connection.
