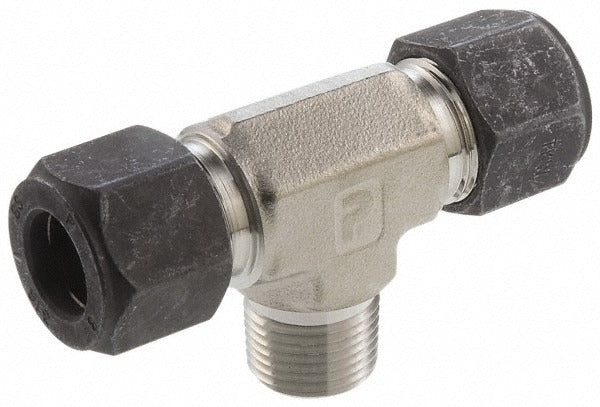

Parker 8-8-6 Sbz-ss Compression Male Branch Tee 3/8 in

Product Description

The PARKER 8-8-6 SBZ-SS is a compression tube male branch tee designed for high-pressure fluid and gas distribution systems. Constructed from stainless steel, it offers strong corrosion resistance in demanding service environments. The fitting connects via compression on two ports and a male NPT thread on the branch port, with a 3/8-inch thread size and a maximum working pressure of 6300 psi. It is suited for use in instrumentation, hydraulic, pneumatic, and process piping applications where a reliable three-way branch connection is required. Licensed plumbers, pipefitters, and instrumentation technicians are the typical installers.

This fitting is used where a compression tube line must branch off to a male-threaded port, common in industrial process systems, refrigeration lines, and high-pressure instrumentation panels. The compression-by-compression-by-MNPT end configuration makes it straightforward to integrate into existing tubing runs without welding or soldering. Its stainless steel construction makes it appropriate for corrosive media, high-temperature service, and sanitary applications requiring material compatibility with aggressive fluids.

Key Features

• Stainless steel construction for superior corrosion resistance and durability
• Maximum working pressure of 6300 psi for high-pressure service
• Three-way branch configuration with Compression x Compression x MNPT end connections
• 3/8-inch thread size in MPT standard
• Suitable for instrumentation, process, and refrigeration piping systems

Compatibility

Designed as an OEM-style replacement or direct-install fitting for compression tube systems utilizing 3/8-inch male NPT branch connections in high-pressure fluid or gas service.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or instrumentation technician in accordance with applicable codes such as the IPC or relevant ASME standards. Depressurize and isolate the line completely before disassembly or fitting installation. Compression fittings require proper tube preparation and correct ferrule seating to achieve a leak-free joint. Do not overtighten the compression nut, as this can deform the ferrule and compromise the seal.
