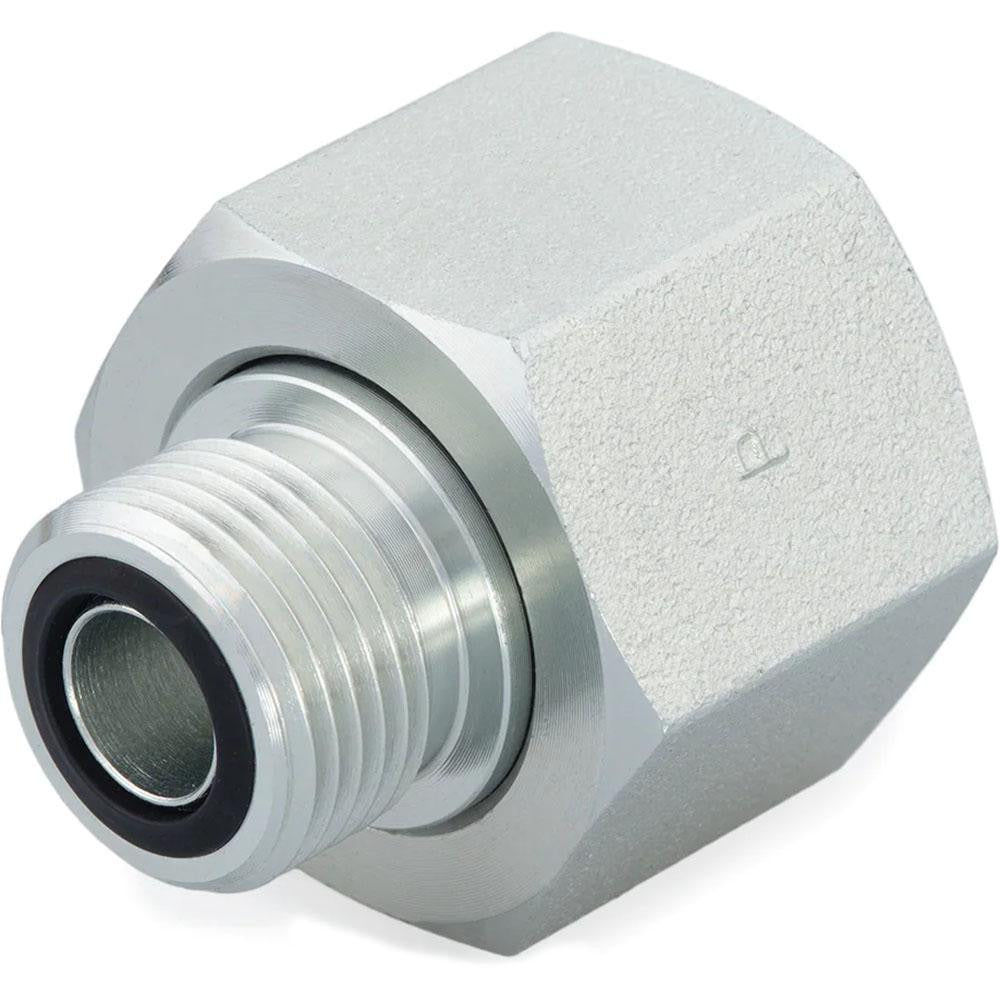

Parker 8-6 Trlon-s Tube End Reducer Orfs 1/2x3/8 9200 Psi

Product Description

The PARKER 8-6 TRLON-S is a compression-style tube end reducer with an O-Ring Face Seal (ORFS) end connection, manufactured from steel. It steps down a 1/2-inch outside-diameter tube to a 3/8-inch outside-diameter tube and is rated to a maximum working pressure of 9200 psi. This fitting is designed for high-pressure hydraulic and fluid-power plumbing systems where a leak-free, face-seal connection is required. Licensed plumbers, pipefitters, and hydraulic system technicians install this type of fitting in industrial and mobile equipment applications.

This tube end reducer is used wherever a transition between two different tube outside diameters is needed within an ORFS plumbing circuit. Typical applications include hydraulic power units, mobile equipment fluid lines, and industrial machinery plumbing where system pressures can reach the upper range of standard hydraulic tubing. The UNF thread standard ensures compatibility with widely used ORFS port and hose-end fittings in North American hydraulic systems.

Key Features

• Reduces 1/2-inch OD tube to 3/8-inch OD tube in a single fitting
• O-Ring Face Seal (ORFS) end connection for a positive, leak-free seal
• Maximum working pressure rated at 9200 psi
• Steel construction for durability in high-pressure hydraulic service
• UNF thread standard for broad compatibility with ORFS fittings
• Compression-style design — no soldering or flaring required

Compatibility

Designed for use in hydraulic and fluid-power tube assemblies using O-Ring Face Seal fittings with UNF threads. Suitable for systems accommodating 1/2-inch and 3/8-inch outside-diameter tubing at pressures up to 9200 psi.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or hydraulic technician familiar with high-pressure fluid systems. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the O-ring sealing face for nicks or contamination before assembly; a damaged face seal surface will result in a leak. Follow the fitting manufacturer's recommended assembly procedure and torque guidelines for ORFS connections as specified in applicable system documentation.
