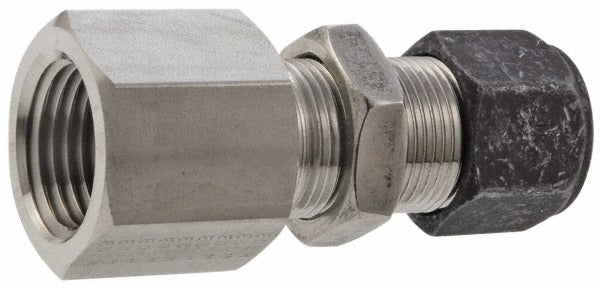

Parker 8-6 GH2BZ-SS Bulkhead Female Connector 3/8 in Ss

Product Description

The PARKER 8-6 GH2BZ-SS is a stainless steel compression tube bulkhead female connector designed for routing tubing through a panel, bulkhead, or enclosure wall. It accepts a compression-style tube connection on one end and a female NPT (FNPT) threaded connection on the other, with a 3/8-inch thread size. Rated for a maximum working pressure of 6,300 psi, this fitting is built for demanding fluid and instrumentation systems where pressure integrity and corrosion resistance are critical. Licensed plumbers, pipefitters, and instrumentation technicians are the typical installers.

This connector is suited for industrial instrumentation, process control, and hydraulic or pneumatic tubing systems where a tube line must pass through a panel wall with a secure, leak-tight seal. The stainless steel construction makes it appropriate for corrosive environments, high-pressure service, and applications requiring material traceability. It is sold individually and is commonly found in oil and gas, chemical processing, and HVAC control panel applications.

Key Features

• Maximum working pressure of 6,300 psi for high-pressure service
• Stainless steel construction provides corrosion resistance in harsh environments
• Compression x FNPT end connections for panel or bulkhead tube routing
• 3/8-inch thread size with FPT thread standard
• Compact single-piece fitting sold in individual quantity

Compatibility

Designed as an OEM-style compression tube bulkhead fitting for use in high-pressure instrumentation, process, and fluid system tubing applications requiring a panel pass-through with FNPT connection.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or instrumentation technician familiar with compression fittings and threaded connections. Depressurize and isolate the system fully before removing or installing any fittings. Apply appropriate thread sealant to the FNPT threads per the system fluid compatibility and local code requirements. Verify the compression sleeve and nut are correctly seated on the tubing before applying final torque per the fitting manufacturer's assembly instructions.
