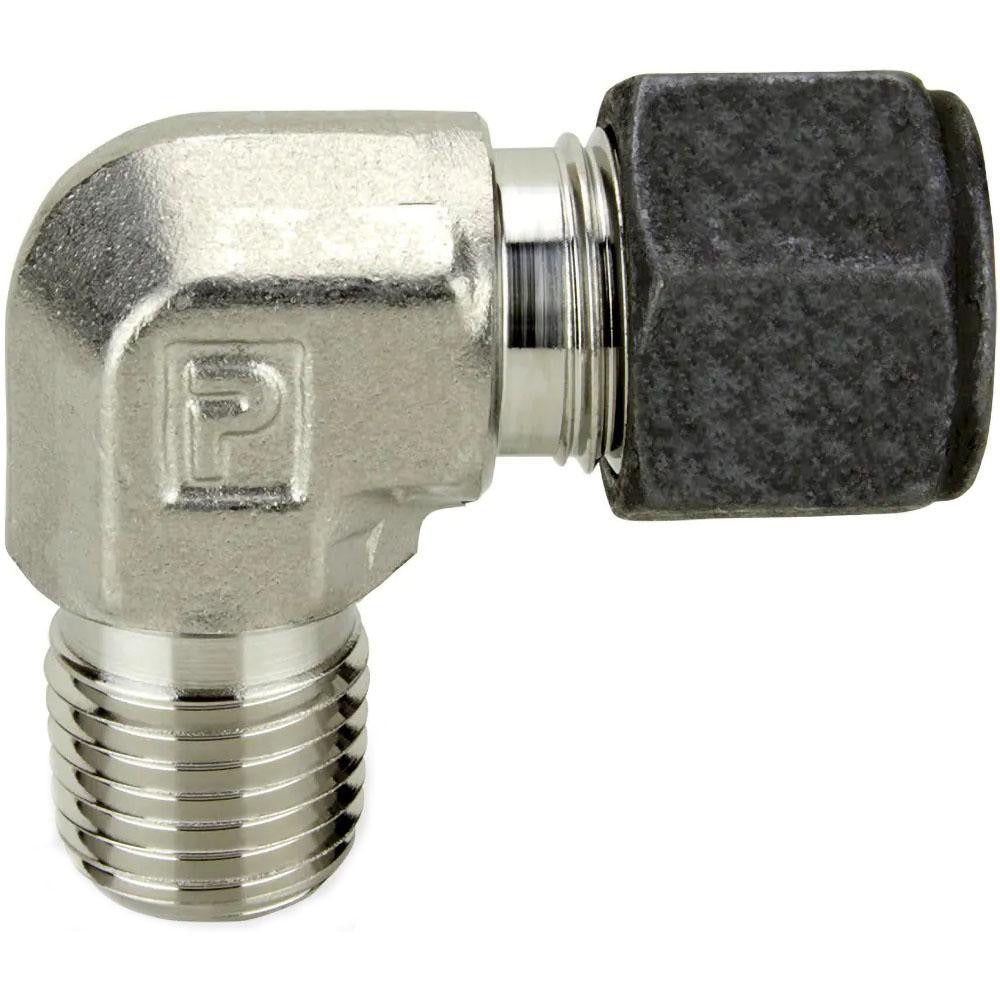

Parker 8-6 Cbz-ss Compression Male Elbow 3/8 in Ss

Product Description

The PARKER 8-6 CBZ-SS is a compression tube male elbow fitting machined from stainless steel for reliable performance in high-pressure fluid and gas line applications. It connects a compression tube end to a male NPT threaded port, forming a 90-degree directional change in the line. With a maximum working pressure of 6,300 psi, this fitting is suited for demanding hydraulic, pneumatic, instrumentation, and process piping systems. The stainless steel construction resists corrosion in wet, chemical, and outdoor service environments. Licensed plumbers, pipefitters, and instrumentation technicians are the primary installers of this type of fitting.

This fitting is used in residential, commercial, and industrial installations where a tube-to-pipe transition is needed at a 90-degree angle. Typical applications include instrument tubing runs, process control lines, hydraulic systems, and fluid distribution panels. The 3/8 inch MNPT thread mates with standard NPT female ports on valves, manifolds, and equipment housings. The compression end accepts tubing without soldering or flaring, making it practical for field assembly and maintenance access.

Key Features

• Stainless steel construction for corrosion resistance in harsh service environments
• Maximum working pressure of 6,300 psi for high-pressure system compatibility
• Compression x MNPT end connections allow tube-to-pipe transitions without soldering or flaring
• 3/8 inch male NPT thread conforms to standard MPT thread specification
• 90-degree elbow geometry routes tubing in space-constrained installations
• Single-piece construction with no internal seals to replace

Compatibility

Designed as an OEM-style compression fitting for use in instrumentation, hydraulic, and process piping systems requiring a 3/8 inch MNPT male thread and a compression tube end connection.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified instrumentation technician in accordance with applicable IPC and ASME B31 piping codes. Depressurize and isolate the system completely before removing or installing any fitting. Use an appropriate tube cutter to produce a clean, square tube end before seating the compression sleeve. Do not overtighten the compression nut, as this can deform the ferrule and compromise the seal.
