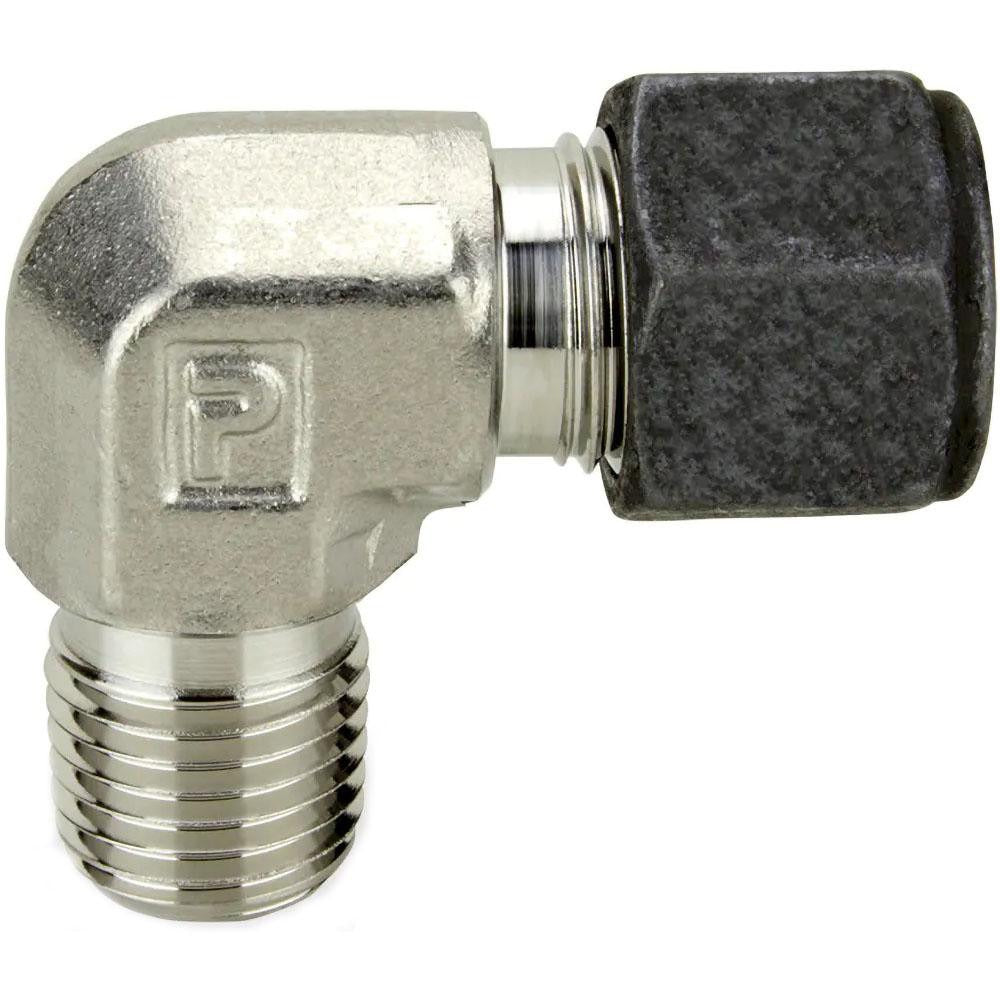

Parker 8-4 Cbz-ss Compression Male Elbow 1/4 in Ss

Product Description

The PARKER 8-4 CBZ-SS is a compression tube male elbow fitting machined from stainless steel for use in high-pressure fluid and gas line applications. It transitions a compression tube connection to a 1/4 inch male NPT (MNPT) threaded port at a 90-degree angle, allowing directional routing in tight or confined spaces. With a maximum working pressure rating of 6,300 psi, this fitting is suited for hydraulic, pneumatic, instrumentation, and process piping systems where corrosion resistance and pressure integrity are critical. Plumbers, pipefitters, and instrumentation technicians working in commercial, industrial, and mechanical systems rely on this type of fitting for secure, leak-free connections.

This fitting is appropriate for use in residential and commercial plumbing, HVAC refrigerant line sets, hydraulic control systems, and instrumentation tubing assemblies where a compression-to-MNPT male elbow transition is required. The stainless steel construction makes it well suited for corrosive environments, marine applications, chemical service lines, and sanitary systems. It is sold individually and installs using standard compression fitting techniques without soldering or flaring.

Key Features

• Compression x MNPT end connections allow tool-free tube insertion with threaded port termination
• Maximum working pressure rated to 6,300 psi for demanding hydraulic and instrumentation service
• Stainless steel construction provides corrosion resistance in harsh or wet environments
• 1/4 inch thread size conforms to MPT thread standard for broad compatibility
• 90-degree male elbow geometry simplifies directional routing in confined installations
• Sold as a single unit with no minimum order requirement beyond one piece

Compatibility

Designed as an OEM-style replacement or new-install compression tube male elbow fitting for systems requiring a 1/4 inch MNPT port with a compression tube inlet.

Installation Notes

Installation of compression fittings should be performed by a licensed plumber, pipefitter, or qualified instrumentation technician in accordance with applicable codes such as the IPC or relevant ANSI standards. Isolate and depressurize the system completely before removing or installing any fitting. Compression fittings require proper tube squareness and ferrule seating to achieve a leak-free connection — do not overtighten, as this can deform the ferrule and compromise the seal. Apply thread sealant or PTFE tape to the MNPT threads per the system requirements and local code.
