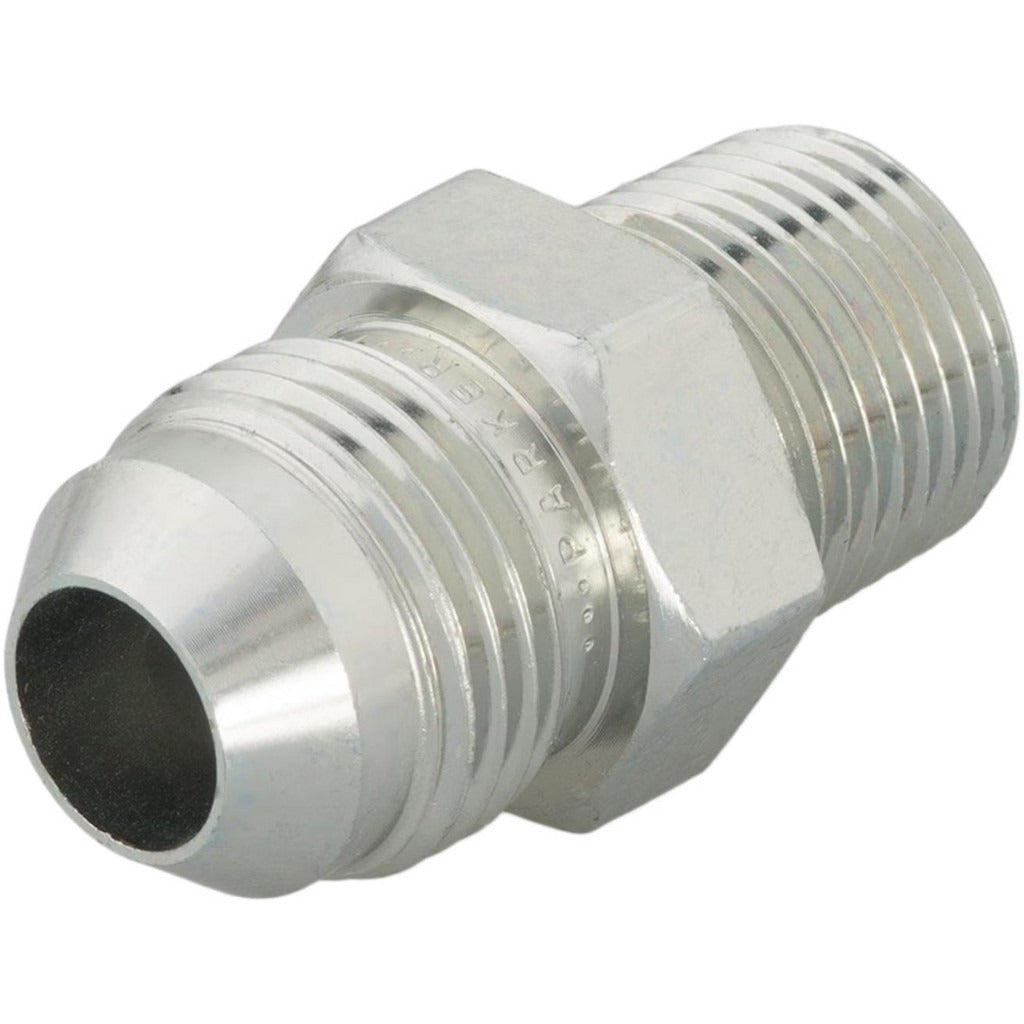

Parker 8-16 Ftx-ss Stainless Steel Flared Tube Connector

Product Description

The PARKER 8-16 FTX-SS is a stainless steel flared tube connector designed for high-pressure fluid and gas line applications. It features a 37-degree flare seat on the tube end and a male NPTF (National Pipe Taper Fuel) thread on the fitting end, creating a leak-resistant connection between flared tubing and threaded ports. The fitting accommodates a 0.5 inch tube outside diameter and is rated for a maximum working pressure of 4500 psi. Stainless steel construction provides resistance to corrosion and elevated temperatures. Licensed plumbers, HVAC technicians, and industrial pipefitters install this type of fitting in hydraulic, pneumatic, refrigeration, and fuel system assemblies.

This connector is suited for residential and commercial installations where a flared tubing line must terminate into a male NPT port. Typical applications include hydraulic control lines, fuel distribution systems, and refrigerant or process piping where a reliable, pressure-rated metal-to-metal flare seat is required. The NPTF thread form provides a dry-seal connection that does not rely solely on thread sealant to prevent leakage, making it appropriate for high-pressure service environments.

Key Features

• 37-degree flare angle conforms to standard JIC and AN flare specifications for metal-to-metal sealing
• Maximum working pressure of 4500 psi suits demanding hydraulic and high-pressure fluid service
• Stainless steel construction resists corrosion in wet, chemical, and elevated-temperature environments
• NPTF dry-seal thread reduces dependency on sealant tape or compound to achieve a leak-free port connection
• Flare x MNPTF end configuration allows direct transition from flared tubing to a female NPT port
• Compact connector profile fits standard tube and pipe assemblies without requiring additional adapters

Compatibility

Designed as an OEM-style replacement or new-installation fitting for systems using 0.5 inch OD flared tubing with a 37-degree flare seat terminating into a female NPTF-threaded port.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified HVAC technician. Depressurize and isolate the system completely before removing any existing fittings or making new connections. Inspect the flare seat and tube flare for nicks, out-of-round conditions, or debris before assembly, as surface defects compromise the metal-to-metal seal. NPTF fittings are designed for dry-seal service, but consult applicable codes such as the IPC or IFGC to determine whether a compatible thread sealant is required for your specific application and fluid type.
