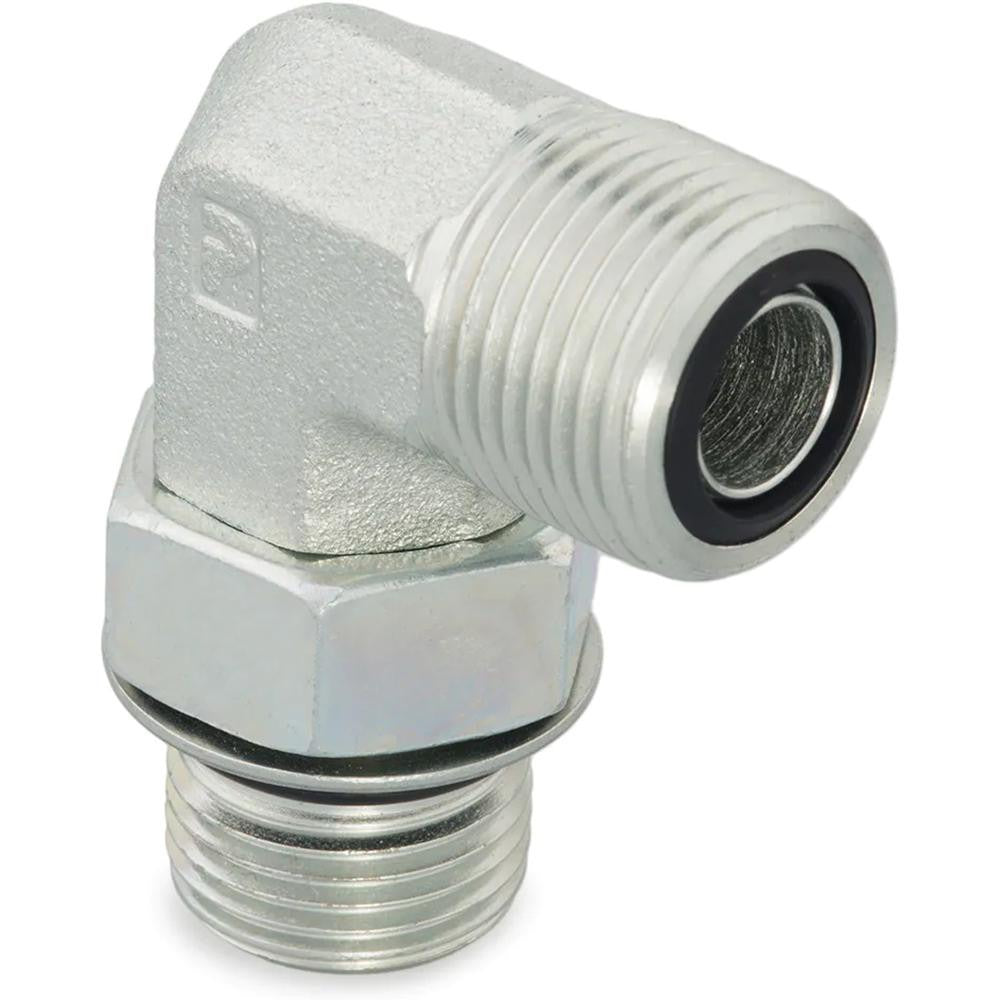

Parker 8-10 C5OLO-S Tube Male Elbow Orfs Sae-orb 6000 Psi

Product Description

The PARKER 8-10 C5OLO-S is a compression tube male elbow fitting designed to connect a 1/2-inch outside-diameter tube to a male O-Ring Face Seal port with an SAE-ORB straight-thread outlet. Constructed from zinc-plated steel, it delivers a rated working pressure of 6000 psi, making it suitable for high-pressure hydraulic and fluid-power lines. The ORFS end connection provides a leak-free metal-to-metal seat with an elastomeric O-ring face seal, while the SAE-ORB male end threads into standard straight-thread O-ring boss ports. Licensed plumbers, hydraulic technicians, and industrial pipefitters install this fitting in demanding fluid-power and pneumatic systems.

This fitting is used in hydraulic systems, mobile equipment, industrial machinery, and heavy-duty fluid-power applications where a 90-degree directional change from a 1/2-inch tube to a threaded port is required. The 7/8-14 UNF thread size is standard across a wide range of hydraulic manifolds, pumps, valves, and cylinders found in both mobile and stationary equipment. It is suited for applications demanding high-pressure integrity with a reliable leak-free seal at the face-seal connection.

Key Features

• Zinc-plated steel construction provides corrosion resistance for hydraulic and fluid-power environments
• 6000 psi maximum working pressure rated for high-pressure hydraulic service
• ORFS x SAE-ORB end connections deliver a dual-seal leak-resistant joint
• 7/8-14 UNF thread size conforms to standard SAE-ORB port specifications
• 1/2-inch tube outside diameter compression end accommodates standard hydraulic tubing
• 90-degree male elbow geometry allows directional routing in tight installations

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and fluid-power systems using 1/2-inch OD tube with ORFS connections mating to SAE-ORB straight-thread boss ports rated at 7/8-14 UNF thread.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed pipefitter familiar with high-pressure fluid-power systems. De-pressurize and bleed the hydraulic circuit completely before removing or installing any fitting. Inspect the O-ring face seal surface and the SAE-ORB port seat for nicks or contamination before assembly, and replace the O-ring if any damage is present. Follow SAE J1453 and applicable OEM torque guidelines for ORFS fittings and SAE J1926 for ORB port connections.
