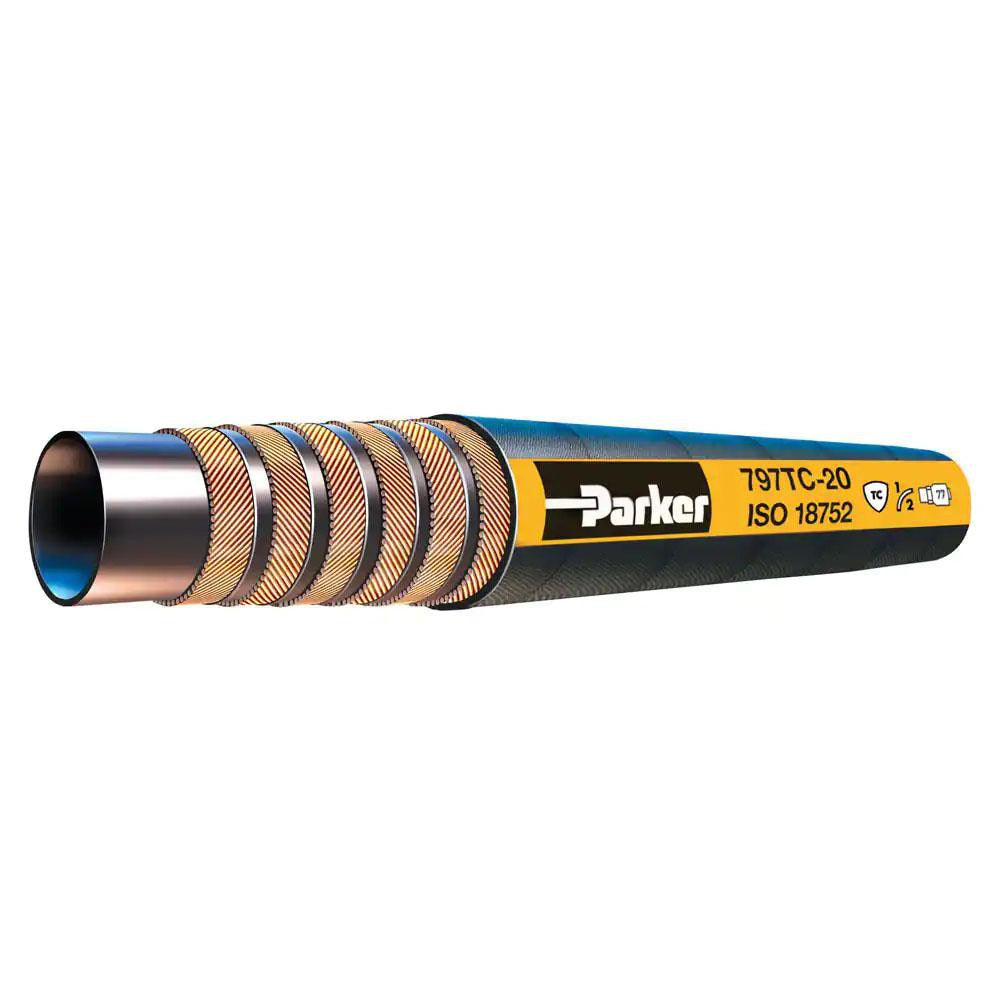

Parker 797TC-8-RL Hydraulic Hose 0.50 in Id 6000 Psi

Product Description

The PARKER 797TC-8-RL is a high-pressure hydraulic hose built for demanding fluid power applications. Constructed from synthetic rubber, it carries a maximum working pressure of 6,000 psi and a maximum working pressure per spec attributes of 24,000 psi at peak rating, with an operating temperature range of -40 degrees F to 257 degrees F. The hose measures 0.50 inches inner diameter and 0.83 inches outer diameter, with a minimum bend radius of 100 millimeters. It is sized and rated for hydraulic circuits found in industrial machinery, mobile equipment, and power units. Licensed hydraulic system technicians and millwrights are the typical installers.

This hose is suited for use in hydraulic power systems operating across a wide temperature range, including outdoor mobile equipment exposed to cold starts and high-cycle industrial presses that generate sustained heat. The black synthetic rubber construction resists oil, hydraulic fluid, and environmental abrasion. It conforms to ISO 18752, making it appropriate for systems specifying that standard. Typical applications include return lines, pressure lines, and suction circuits on construction equipment, agricultural machinery, and stationary hydraulic power units.

Key Features

• Maximum working pressure of 6,000 psi for high-pressure hydraulic circuits
• Synthetic rubber construction resists hydraulic fluid, oil, and abrasion
• Wide temperature range: -40 degrees F to 257 degrees F
• 0.50 inches ID and 0.83 inches OD for standard hydraulic hose fittings
• Minimum bend radius of 100 millimeters supports tight routing in equipment frames
• Meets ISO 18752 standard for hydraulic hose performance

Compatibility

Designed as an OEM-style replacement or new-installation hydraulic hose for fluid power systems requiring a 0.50 inches ID hose rated to ISO 18752 at 6,000 psi working pressure.

Installation Notes

Installation should be performed by a qualified hydraulic technician or millwright. Depressurize and bleed the hydraulic system completely before removing or installing any hose. Use proper crimping or swaging equipment rated for the hose series and fitting type — do not use field-cut reusable fittings unless rated for this hose construction. Verify all connections meet the pressure rating of the circuit before returning the system to service.
