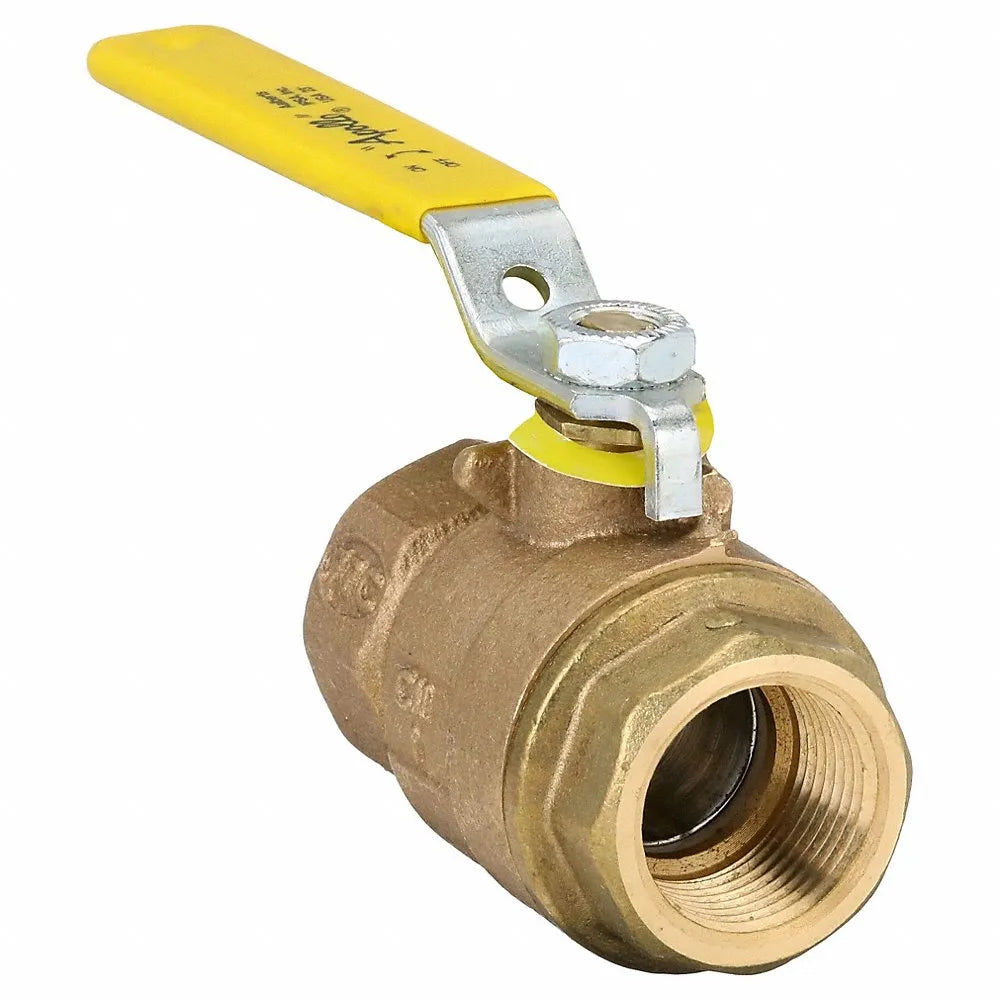

PARKER 77C10501A Bronze Ball Valve 1 Inch NPT Full Port

Product Description

The PARKER Apollo Valves 77C10501A is a bronze ball valve designed for efficient flow control. This valve features a full port design, which allows for maximum flow rate. It is suitable for steam applications and is constructed with PTFE seals and seats, providing reliable performance over time. The manual lever handle makes operation straightforward.

• Full port design for optimal flow
• Built for steam applications
• Two-piece construction for durability

Product Highlights

This valve is essential for plumbing and HVAC applications where reliable flow control is needed.

Product Information

Standard Information

• Brand: PARKER
• MPN: 77C10501A

Technical Specifications

• Item: Ball Valve
• Ball Material: Brass
• Material: Bronze
• Connection Type: FNPT x FNPT
• Nominal Valve Size: 1 inch
• Maximum Operating Pressure: 600 psi
• Media Temperature Range: -20°F to 450°F
• Handle Type: Lever
• Valve Body Style: Straight
• Valve Construction: Two-Piece
• Valve Series: 77C
• Shape: Straight
