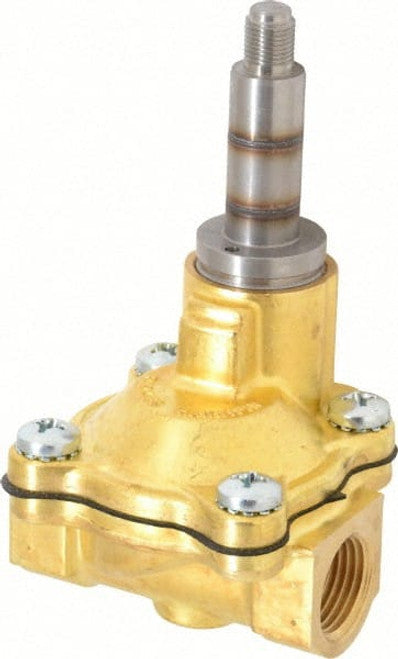

Parker 73228BN4UN00 Skinner 2-Way Normally Open Solenoid Valve

Product Description

The Parker 73228BN4UN00 is a two-way normally open solenoid valve designed for medium to high-pressure settings. It operates efficiently in applications requiring higher flow rates. This valve has a pilot operation that needs a minimum pressure differential for proper function.

• Brass body and NBR seal enable compatibility with lubricated air, inert gases, water, and light oil.
• Features a half-inch NPT port size and five-eighths inch orifice.
• Common applications include irrigation systems, fire suppression, and cooling machinery.

Product Highlights

Reliable operation for various media with a robust brass body.

Product Information

Standard Information

• Brand: Parker
• MPN: 73228BN4UN00

Technical Specifications

• Valve Series: Parker Skinner 7000
• Valve Functional Type: 2 Way
• Valve Flow Patterns: Normally Open
• Valve Body Material: Brass
• Valve Seal Material: NBR
• Valve Media: Air, Water, Oil, Inert Gas
• Port Size: 1/2 in
• Thread Standard: NPT
• Orifice Size: 5/8 in
• Flow Factor Cv: 4.00
• Operating Pressure Differential (MOPD) PSI Air, Inert Gas: 150
• Operating Pressure Differential (MOPD) PSI Water: 150
• Operating Pressure Differential (MOPD) PSI Light Oil: 150
• Minimum Operating Pressure Differential: 5 PSI
• Maximum Working Pressure: 150 PSI
• Maximum Temperature: 185 DEG F
• Power Rating: 10 W
• Standards: CSA Certified, UL Listed, NEMA 4X
• Overall Height: 4.6200 in
• Overall Length: 2.7600 in
