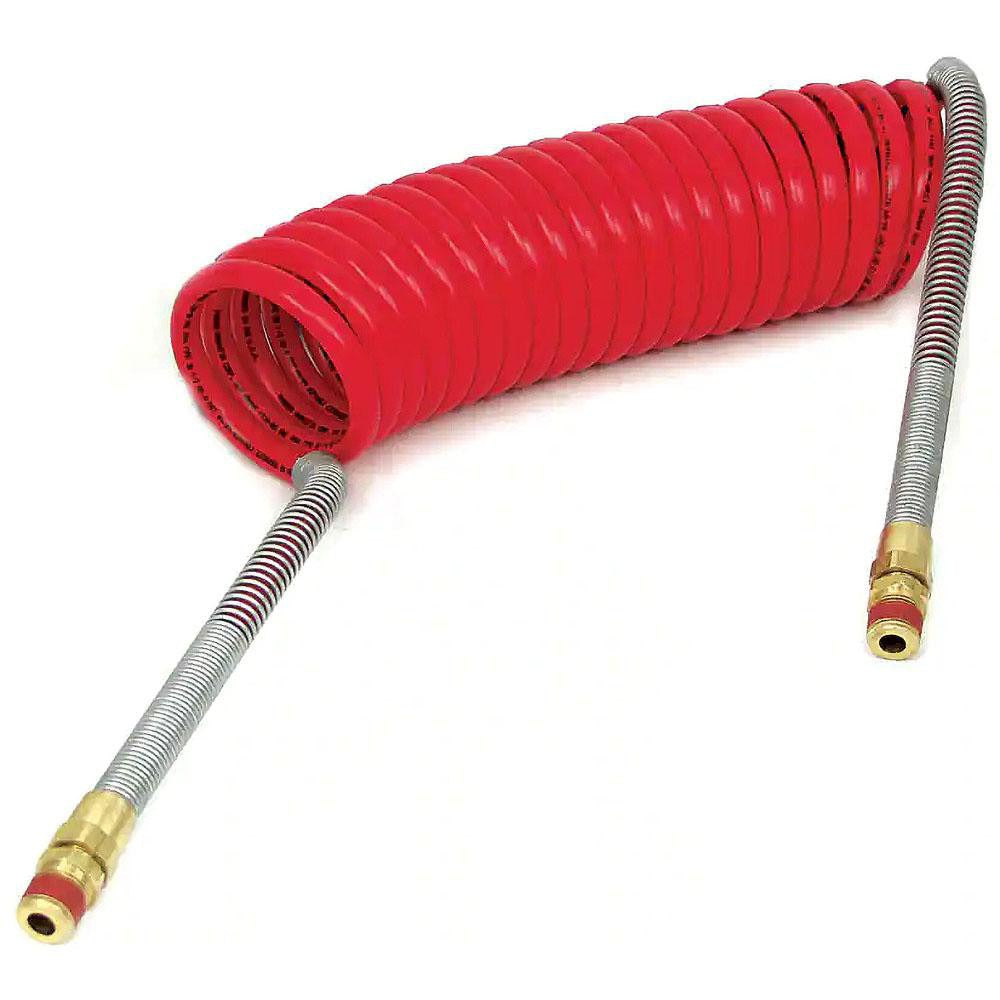

Parker 731513-RED Coiled Nylon Air Hose 3/8 in 15 Ft 150 Psi

Product Description

The PARKER 731513-RED is a coiled self-storing nylon air hose designed for compressed air and fluid transfer applications in trade and industrial environments. The hose features a 3/8 inch inside diameter and a 15-foot extended length, with an outside diameter of 1/2 inch. It is rated for a maximum working pressure of 150 psi and handles temperatures from -40 degrees F to 200 degrees F. Parker NTA brass fittings with 1/2 inch by 1/2 inch thread connections are installed at each end. The red nylon construction offers resistance to abrasion and kinking, and the coiled format retracts for compact storage when not in use. Licensed mechanics, plumbers, and service technicians are the typical installers.

This hose is suited for use at service bays, job sites, and mechanical rooms where a retractable, self-storing air supply line is needed. The 15-foot coiled length provides working reach without excess hose underfoot. The -40 degrees F minimum temperature rating makes it appropriate for cold-climate service environments and unheated shops. The 200 degrees F maximum rating accommodates warm compressed air discharge conditions typical in HVAC and pneumatic tool applications. Tail length is 40 inches, which provides straight hose at each fitting end before the coil begins.

Key Features

• Coiled self-storing design retracts after use to reduce clutter and trip hazards
• 3/8 inch ID nylon hose rated to 150 psi maximum working pressure
• Wide temperature range: -40 degrees F to 200 degrees F
• Parker NTA brass fittings with 1/2 inch by 1/2 inch thread on each end
• 40-inch straight tail length at each end for flexible routing at connection points
• Red color provides quick visual identification on busy job sites

Compatibility

Designed for use with compressed air systems and pneumatic equipment requiring a 1/2 inch threaded connection and a hose rated to 150 psi. Compatible with Parker NTA fitting systems as specified by the manufacturer.

Installation Notes

Installation is typically performed by a licensed mechanic, plumber, or qualified service technician. Depressurize the air supply line completely before disconnecting any existing hose or fittings. Verify that downstream equipment pressure ratings meet or exceed the hose rating before pressurizing. Inspect fittings and thread connections for proper seating and absence of leaks after installation.
