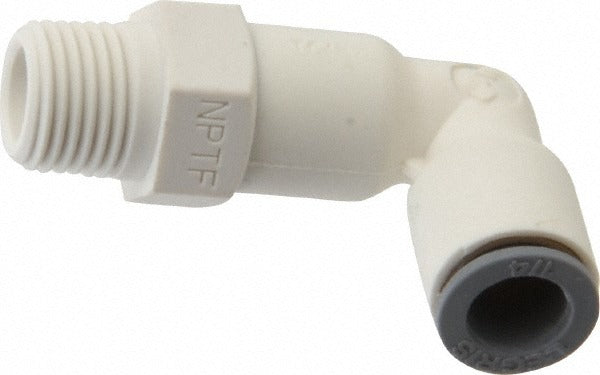

Parker 72338767 Push-to-connect Male Swivel Elbow 1/4 Od

Product Description

The PARKER 72338767 is a push-to-connect male swivel elbow tube fitting designed for pneumatic and fluid-transfer plumbing lines. It accepts 1/4-inch OD tubing and connects to a 1/8-inch NPTF male thread port. The swivel design allows the fitting body to rotate after installation, making it easier to route tubing in tight-access applications. Constructed from bio-sourced Nylon 11 with an EPDM o-ring, the fitting is rated to 230 psi. HVAC technicians, plumbers, and pneumatic system installers use this fitting to make quick, tool-free tube connections at ported valves, actuators, and instrumentation panels.

This fitting is suited for residential and light commercial applications involving compressed air, water, and compatible low-pressure fluid lines. Its push-to-connect interface eliminates the need for compression ferrules or solder, reducing installation time on both new construction and service work. The male swivel elbow configuration is commonly used where a 90-degree direction change is needed and panel or equipment geometry prevents a fixed-thread elbow from being torqued into the correct orientation. Sold in a package of 10 units, it is well-suited for contractors stocking fittings for recurring service calls.

Key Features

• Push-to-connect interface accepts 1/4-inch OD tubing without tools or ferrules
• Swivel elbow body rotates after installation for flexible tubing routing
• Rated to 230 psi for reliable use in pneumatic and fluid lines
• Bio-sourced Nylon 11 construction offers chemical resistance and reduced environmental impact
• EPDM o-ring provides a secure, leak-resistant seal
• 1/8-inch NPTF male thread for a pressure-tight connection at ported components

Compatibility

Designed as an OEM-style push-to-connect fitting for use with 1/4-inch OD tubing and equipment ports threaded to 1/8-inch NPTF standards in pneumatic, HVAC, and plumbing fluid-transfer systems.

Installation Notes

Installation should be performed by a qualified HVAC technician, plumber, or pneumatic systems technician. De-pressurize and lock out the system before removing or installing any fitting. Thread the male NPTF end into the port by hand first, then tighten with an appropriate wrench to avoid cross-threading or over-stressing the nylon body. To insert tubing, push firmly into the collet until seated; to release, depress the collet ring and withdraw the tube.
