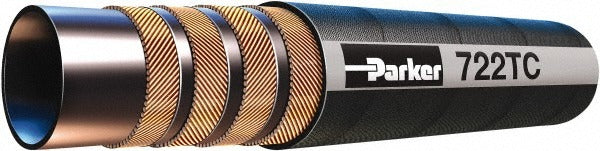

Parker 722TC-10 Hydraulic Hose 4000 Psi 5/8 in Id 150 Ft Coil

Product Description

The PARKER 722TC-10 is a high-pressure hydraulic hose designed for demanding fluid-power applications. It features a 5/8-inch inner diameter and a 1.06-inch outer diameter, with a rated working pressure of 4,000 psi. The hose is constructed from synthetic rubber, providing flexibility and resistance across a wide temperature range of -40 degrees F to 257 degrees F. It is sold in 1-foot increments with a 5-foot minimum cut length from a 150-foot coil. Hydraulic technicians and fluid-power specialists install this hose in mobile and industrial equipment where high-cycle, high-pressure performance is required.

The 722TC-10 is suited for mobile hydraulic systems, industrial machinery, and heavy equipment applications that demand reliable pressure containment and flexibility. The 4-inch minimum bend radius allows routing through tight equipment frames without kinking. The black synthetic rubber construction resists oil, weathering, and abrasion in typical service environments. This hose is appropriate for both OEM assembly lines and field-replacement work on excavators, loaders, presses, and similar hydraulic-driven equipment.

Key Features

• 4,000 psi working pressure rating for high-demand hydraulic circuits
• 5/8-inch ID and 1.06-inch OD for -10 hose size fitment
• Synthetic rubber construction resists oil, abrasion, and weathering
• Wide service temperature range: -40 degrees F to 257 degrees F
• 4-inch minimum bend radius supports tight routing in equipment frames
• ISO 18752 compliant construction
• Sold per foot in 1-foot increments; 5-foot minimum cut, 150-foot total coil

Compatibility

Designed as an OEM-style replacement and new-installation hose for hydraulic systems requiring a -10 hose size at 4,000 psi working pressure, conforming to ISO 18752 standards.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed the hydraulic system fully before disconnecting any existing hose. Verify that all fittings and end connections are compatible with the -10 hose size and rated for 4,000 psi or greater before assembly. Do not exceed the 4-inch minimum bend radius during routing, and avoid contact with sharp edges or heat sources that could damage the outer jacket.
