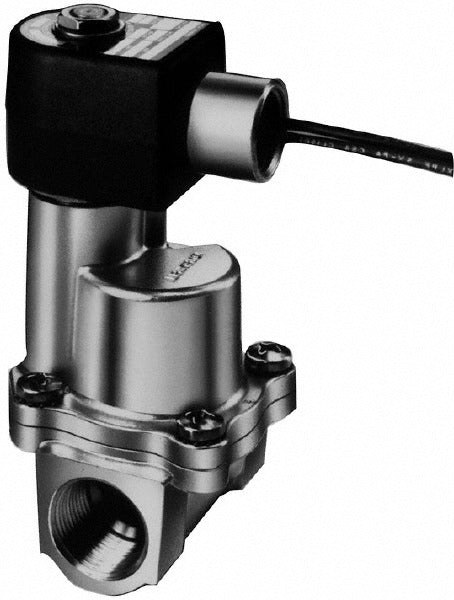

Parker 72218BN5VE00 Solenoid Valve 3/4 Inch Npt Brass

Product Description

The PARKER 72218BN5VE00 is a direct-acting, normally closed solenoid valve designed for control of hot water and compatible fluid systems. It features a 3/4 inch NPT port, a brass body, and an ethylene propylene diene monomer (EPDM) seal rated for fluid temperatures up to 210 degrees F. The valve operates across a wide range of voltages including 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, making it adaptable to many control circuit configurations. It carries CSA, UL, and NEMA 4X certifications. Licensed plumbers, HVAC technicians, and mechanical contractors are the primary installers of this valve in commercial and residential piping systems.

This valve is suited for hot water applications in both residential and light commercial systems. The direct-acting design means the valve opens and closes purely on solenoid force with no minimum pressure differential required, making it reliable at zero-differential-pressure conditions. A Cv factor of 5.0 and a 3/4 inch orifice support adequate flow capacity for typical zone control, isolation, or fluid-handling applications. Maximum working pressure is 40 psi. The coil is included with the valve.

Key Features

• Direct-acting operation with zero minimum pressure differential required
• Normally closed unactuated state for fail-safe shutoff
• Brass body construction for corrosion resistance in water service
• EPDM seal rated for hot water service up to 210 degrees F
• Multi-voltage compatible: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac
• CSA Certified, UL Listed, and NEMA 4X rated for wet environment installations
• Coil included; 3/4 inch orifice with Cv factor of 5.0

Compatibility

Designed as a direct-acting solenoid valve for hot water piping systems requiring a normally closed, 3/4 inch NPT brass valve with EPDM seals and multi-voltage coil operation.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical technician in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before removing or installing the valve. Verify that supply voltage matches the coil voltage rating before energizing. Do not exceed the 40 psi maximum working pressure rating or the 210 degrees F maximum fluid temperature.
