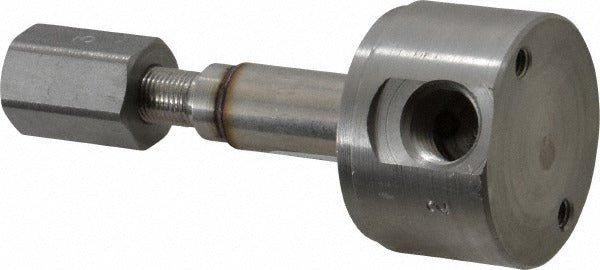

Parker 71395SN2ENJ1 Solenoid Valve 1/4 Inch Port

Product Description

The PARKER 71395SN2ENJ1 is a normally open solenoid valve body designed for precise fluid or gas flow control in industrial and commercial systems. The valve features a 1/4 inch port, a stainless steel body, and an NBR seal, making it suited for applications requiring corrosion resistance and compatibility with a range of media. With a Cv factor of 0.1000 and a 1/16 inch orifice, this valve is designed for low-flow control applications. Note that this valve body requires an integrated coil to form a complete, operational valve assembly. Licensed technicians and mechanical contractors typically specify this type of component in process piping, HVAC, and fluid-handling systems.

This valve is appropriate for residential and commercial installations where a normally open solenoid valve is required. The minimum operating pressure differential is 0, meaning the valve can function in gravity-fed or low-pressure systems without a pressure differential to assist actuation. The maximum rated operating temperature is 185 degrees F. The stainless steel body and NBR seal suit it for use in water, air, and many common industrial fluid applications. Always verify media compatibility with the seal material before installation.

Key Features

• Normally open valve state — flow passes through when the coil is de-energized
• 1/4 inch port size for compact, low-flow circuit integration
• Stainless steel body provides corrosion resistance in demanding environments
• NBR seal material compatible with water, air, and many petroleum-based fluids
• Zero minimum operating pressure differential — functional in low-pressure and gravity-fed systems
• Requires a separately sourced integrated coil for complete valve operation

Compatibility

Designed as a solenoid valve body for use in systems requiring a 1/4 inch normally open valve with an integrated coil. A compatible coil must be sourced separately to complete the valve assembly. Verify coil compatibility with PARKER specifications before ordering.

Installation Notes

Installation should be performed by a licensed mechanic, pipefitter, or qualified technician familiar with fluid control systems and applicable codes. Shut off all upstream pressure and de-energize the system before servicing or installing this valve. Do not apply power or pressurize the system until the integrated coil is properly installed and all connections are secured and leak-tested. Confirm media and temperature compatibility with both the stainless steel body and NBR seal prior to commissioning.
