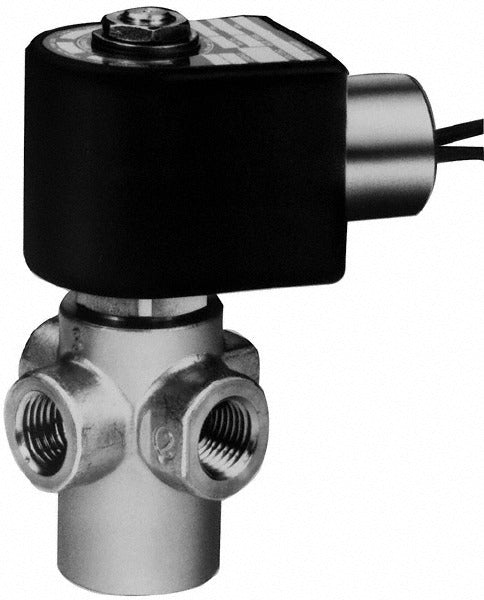

Parker 71395SN1ENJ1 Solenoid Valve 1/8 Inch Npt

Product Description

The PARKER 71395SN1ENJ1 is a direct-acting, normally open solenoid valve designed for precise fluid and gas control in industrial and commercial systems. It features a 1/8 inch NPT port, a stainless steel body, and an NBR seal, making it suited for demanding environments where corrosion resistance and seal integrity are critical. The valve operates across a wide voltage range including 12 Vdc, 24 Vdc, 120 Vdc, 24/60 Vac, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, giving it broad application flexibility. Maximum working pressure is 250 psi. A coil is included, though the valve requires an integrated coil for complete assembly. Licensed electricians, pipefitters, and instrumentation technicians are the typical installers.

This valve is suited for use in HVAC, refrigeration, process control, pneumatic, and fluid handling systems where a normally open, direct-acting valve at a 1/8 inch port size is required. Its zero minimum operating pressure differential rating means it functions without a pressure drop across the valve, making it appropriate for gravity-fed or low-pressure circuits. The stainless steel body and NBR seal suit it for mild chemical, water, and air service in both indoor and outdoor enclosures rated to NEMA 4X.

Key Features

• Direct-acting operation with zero minimum pressure differential required
• Normally open valve state — de-energized position allows flow
• Stainless steel body for corrosion resistance in wet or chemically active environments
• NBR seal compatible with water, air, and a range of mild fluids
• Multi-voltage coil compatibility: 12 Vdc, 24 Vdc, 120 Vdc, 24/60 Vac, 120/60 to 110/50 Vac, 240/60 to 220/50 Vac
• Certified to CSA, UL, NEMA 4X, IEC 61508:2010, and rated SIL 3 Capable for safety-critical applications

Compatibility

Designed as a direct-acting replacement solenoid valve for 1/8 inch NPT normally open valve applications in industrial, HVAC, and process control systems requiring multi-voltage coil operation and stainless steel construction.

Installation Notes

Installation should be performed by a licensed pipefitter, instrumentation technician, or qualified HVAC-R mechanic. Shut off system pressure and de-energize all electrical circuits before beginning work. Confirm that the supply voltage matches one of the rated coil voltages before energizing. Note that the integrated coil must be fully assembled to the valve body before operation — do not energize the coil without the valve assembly complete.
