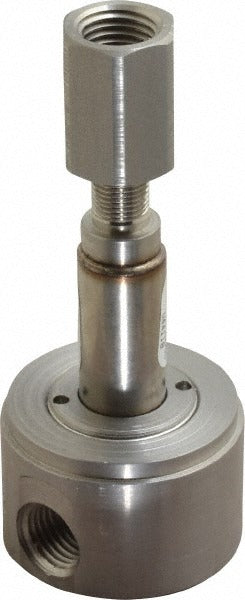

Parker 71315SN2GVJ1 Solenoid Valve 1/4 in Port Nc

Product Description

The PARKER 71315SN2GVJ1 is a normally closed solenoid valve with a 1/4 inch port, designed for precise fluid or gas flow control in industrial and commercial systems. The valve body is constructed from stainless steel, and the seals are FKM fluorocarbon, making it well suited for applications involving aggressive media or elevated temperatures up to 185 degrees F. With a Cv factor of 0.11 and a 1/16 inch orifice, this is a low-flow valve intended for systems requiring tight shutoff and accurate flow management. Note that an integrated coil is required to complete the valve assembly and is not included. Licensed plumbers, HVAC technicians, and industrial maintenance professionals typically install this type of valve.

This valve is appropriate for residential and commercial fluid control applications where a compact, corrosion-resistant normally closed shutoff is required. The stainless steel body handles a range of media including water, air, and compatible chemicals, while the FKM fluorocarbon seals resist degradation from fuels, hydraulic fluids, and many solvents. The zero minimum operating pressure differential rating means it can operate in low-pressure or gravity-fed systems without requiring a pressure differential to cycle correctly.

Key Features

• Normally closed (NC) valve state — closes automatically when de-energized
• Stainless steel body for corrosion resistance in demanding environments
• FKM fluorocarbon seals rated for compatibility with fuels, solvents, and aggressive media
• Zero minimum operating pressure differential — functions in low-pressure and gravity-fed lines
• Maximum operating temperature of 185 degrees F
• CSA Certified, UL Listed, and NEMA 4X rated enclosure compatibility
• Requires a separately sourced integrated coil for complete valve operation

Compatibility

Designed as an OEM-style replacement or new-installation solenoid valve for 1/4 inch port fluid and gas control systems where a normally closed stainless steel valve with FKM seals is specified. A compatible integrated coil must be sourced separately to complete the assembly.

Installation Notes

Installation should be performed by a qualified technician following applicable plumbing or mechanical codes such as IPC or IFGC. Shut off supply pressure and de-energize the circuit before disassembling any line or connecting the valve. Verify that the separately required integrated coil is matched to the correct voltage and coil specification before energizing. Do not apply pipe sealant or thread tape beyond the port threads, and avoid over-tightening fittings into the stainless steel body to prevent thread damage.
