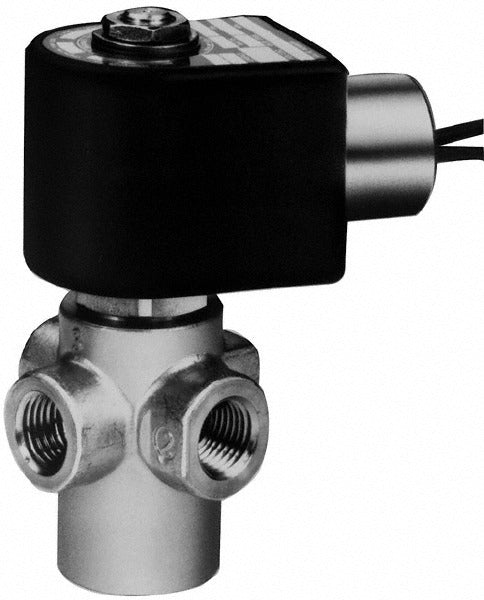

Parker 71315SN2ENJ1 Solenoid Valve 1/4 Inch Port

Product Description

The PARKER 71315SN2ENJ1 is a normally closed solenoid valve designed for precise fluid or gas flow control in industrial and commercial systems. The valve body is constructed from stainless steel, and the seal material is NBR (nitrile butadiene rubber), making it suitable for a range of compatible media. It features a 1/4 inch port size and a Cv factor of 0.0600, indicating a low-flow application. The orifice size is 3/64 inch with an orifice sleeve size of 1/16 inch. Note that this valve requires a separately sourced integrated coil for complete, operational assembly. Licensed technicians and industrial maintenance professionals are the primary installers.

This solenoid valve is suited for use in fluid or gas control applications where a normally closed, de-energized-shut configuration is required. Its stainless steel body makes it appropriate for environments where corrosion resistance is a priority. The minimum operating pressure differential is 0, meaning it can operate under no-flow or low-pressure conditions. With a maximum operating temperature of 185 degrees F, it covers a wide range of process and HVAC-adjacent applications. It is sold individually and packaged as a single unit.

Key Features

• Normally closed (NC) unactuated state — valve shuts off flow when de-energized
• Stainless steel body construction for corrosion resistance in demanding environments
• NBR seal material compatible with a range of fluids and gases
• 1/4 inch port size with a Cv factor of 0.0600 for low-flow precision control
• Minimum operating pressure differential of 0 — functional at zero differential pressure
• Requires an integrated coil (sold separately) for complete valve assembly

Compatibility

Designed as an OEM-style replacement or new-installation solenoid valve for industrial, commercial, or process control systems requiring a 1/4 inch normally closed valve with stainless steel construction and NBR sealing.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid or gas control systems. Isolate and depressurize the line completely before installing or removing the valve. An integrated coil must be sourced and attached separately before the valve will function — confirm coil voltage and connector compatibility prior to installation. Follow all applicable local codes and the manufacturer coil specifications when making electrical connections to the coil assembly.
