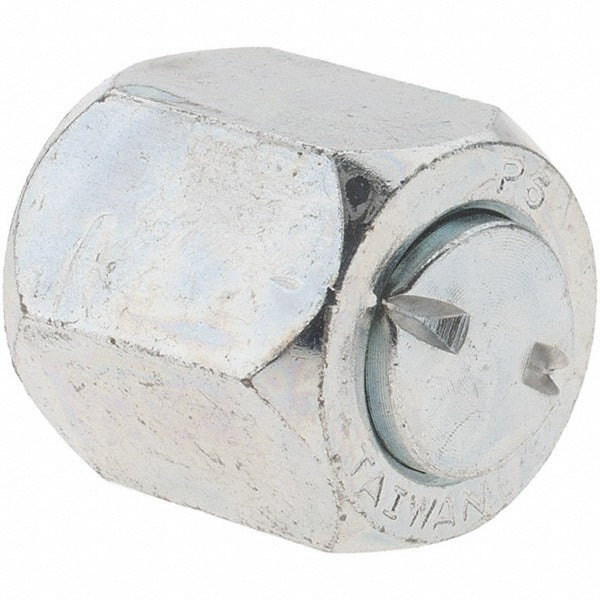

Parker 712259 Steel Flared Tube Cap 3/8 in 37 Degree

Product Description

The PARKER 712259 is a steel flared tube cap designed to seal the open end of a 3/8-inch OD flare fitting. It uses a 37-degree flare end connection, conforming to SAE J514 and ISO 8434-2 standards. Rated to 6000 psi maximum working pressure and a maximum working temperature of 500 degrees F, this cap is built for demanding hydraulic and fluid system applications. Licensed plumbers, hydraulic system technicians, and pipefitters install this type of fitting when capping off active or inactive lines during service, system modification, or pressure testing.

This cap is suited for use in hydraulic lines, fluid power systems, and high-pressure tubing assemblies where a reliable, pressure-rated seal is required. The 37-degree flare geometry is standard in JIC-style hydraulic fittings commonly found in industrial, mobile equipment, and HVAC refrigerant line applications. It is sold in a package quantity of 5 units.

Key Features

• 37-degree flare end connection per SAE J514 and ISO 8434-2
• Rated to 6000 psi maximum working pressure
• Maximum working temperature of 500 degrees F (260 degrees C)
• Steel construction for durability in high-pressure fluid systems
• 3/8-inch tube OD fitment
• Overall length of 0.81 inches

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and fluid power systems using 3/8-inch OD, 37-degree JIC-style flare connections per SAE J514.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed pipefitter. Depressurize and drain the line completely before removing any existing fitting or installing this cap. Ensure mating flare surfaces are clean and free of debris before tightening. Follow applicable SAE and system manufacturer torque guidelines for flare fittings.
