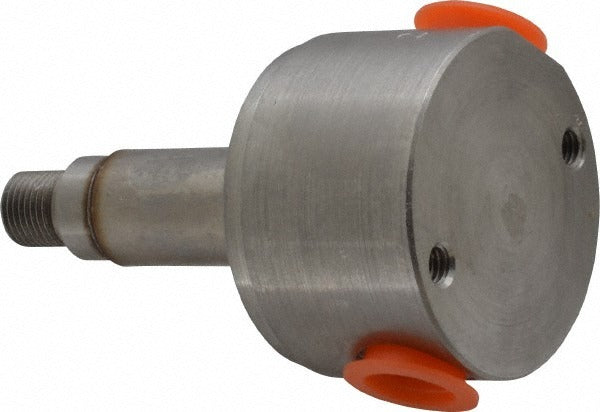

Parker 71215SN2QN00 Direct Acting Solenoid Valve 1/4 in Npt

Product Description

The PARKER 71215SN2QN00 is a direct-acting, normally closed solenoid valve designed for precise fluid or gas flow control in industrial and commercial systems. Built with a stainless steel body and NBR seal, it delivers corrosion resistance and reliable seating across a wide range of media. The valve accepts multiple voltage inputs, including 12Vdc, 24Vdc, 24/60Vac, 120Vdc, 120/60 to 110/50Vac, and 240/60 to 220/50Vac, making it adaptable to diverse electrical configurations. With a maximum working pressure of 150 psi and a minimum operating pressure differential of zero, it supports both differential and zero-differential-pressure applications. Licensed HVAC technicians, pipefitters, and industrial maintenance professionals are the typical installers.

This valve is suited for residential, commercial, and light industrial fluid-handling applications where a 1/4 inch NPT port is required. Its direct-acting design means it opens and closes independent of line pressure, making it useful in low-pressure or vacuum-pressure systems. Typical install scenarios include refrigeration circuits, process control lines, water treatment systems, and compressed air assemblies. The integrated coil configuration and multi-voltage rating allow deployment across North American and international electrical supply standards within a single valve design.

Key Features

• Normally closed direct-acting design operates at zero minimum pressure differential
• Stainless steel body provides corrosion resistance for aggressive media applications
• NBR seal material compatible with a broad range of fluids and gases
• Multi-voltage coil accepts 12Vdc, 24Vdc, 24/60Vac, 120Vdc, 120/60 to 110/50Vac, and 240/60 to 220/50Vac
• CSA Certified, UL Listed, and NEMA 4X rated for use in wet or wash-down environments
• Cv factor of 0.4 and 5/32 inch orifice sized for precise flow control in small-bore lines

Compatibility

Designed as a direct-acting replacement solenoid valve for 1/4 inch NPT small-bore fluid and gas control applications. Requires an integrated coil for complete valve assembly; confirm coil voltage matches the supply circuit before installation.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or qualified industrial technician in accordance with applicable local codes and the IFGC or IPC where gas or fluid lines are involved. Shut off and depressurize the line and de-energize the electrical supply before servicing or replacing the valve. Verify that the supply voltage matches one of the rated coil voltages prior to energizing. Observe flow direction markings on the valve body and apply appropriate thread sealant to NPT connections per job specifications.
