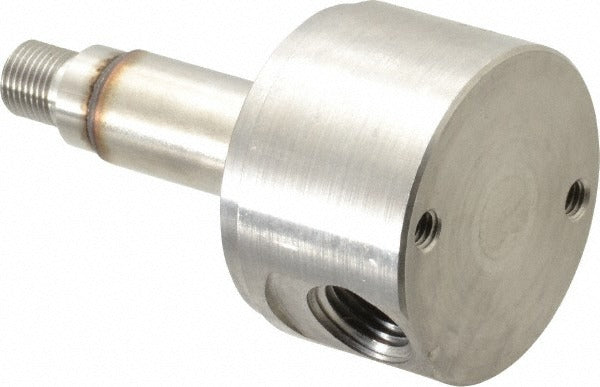

Parker 71215SN2EN00 Solenoid Valve 1/4 Inch Npt

Product Description

The PARKER 71215SN2EN00 is a direct-acting, normally closed solenoid valve designed for precise fluid and gas control in industrial and commercial applications. Built with a stainless steel body and NBR seal, it handles maximum working pressures up to 450 psi and operating temperatures up to 185 degrees F. The valve features a 1/4 inch NPT port and is compatible with a wide range of voltage inputs including 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, making it adaptable across many control circuit configurations. An integrated coil is required for complete valve operation. Licensed trades and industrial maintenance technicians are the typical installers.

This valve is suited for residential, commercial, and light industrial systems where reliable on/off fluid or gas control is needed. Its direct-acting design means it operates with zero minimum pressure differential, allowing use in low-pressure or vacuum applications where pilot-operated valves would not function. The stainless steel construction makes it a strong choice for corrosive media or wash-down environments. The NEMA 4X rating supports use in wet or outdoor-exposed locations. The compact overall footprint makes it practical in tight panel or manifold configurations.

Key Features

• Direct-acting design operates at zero minimum pressure differential
• Stainless steel body for corrosion resistance in harsh media environments
• NBR seal material compatible with a broad range of fluids and gases
• Multi-voltage compatibility: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, 240/60 to 220/50 Vac
• Rated to 450 psi maximum working pressure
• CSA Certified, UL Listed, and NEMA 4X rated
• Normally closed unactuated state for fail-safe shutoff

Compatibility

Designed as a direct-acting solenoid valve replacement or new installation for systems requiring 1/4 inch NPT porting, stainless steel construction, and NBR sealing. Coil must be specified and sourced separately to complete the valve assembly.

Installation Notes

Installation should be performed by a licensed technician familiar with fluid system controls and applicable codes. De-energize and depressurize the system fully before removing or installing the valve. Ensure the selected coil voltage matches the control circuit before energizing. NPT threaded connections should be sealed with an appropriate thread sealant rated for the media being controlled.
