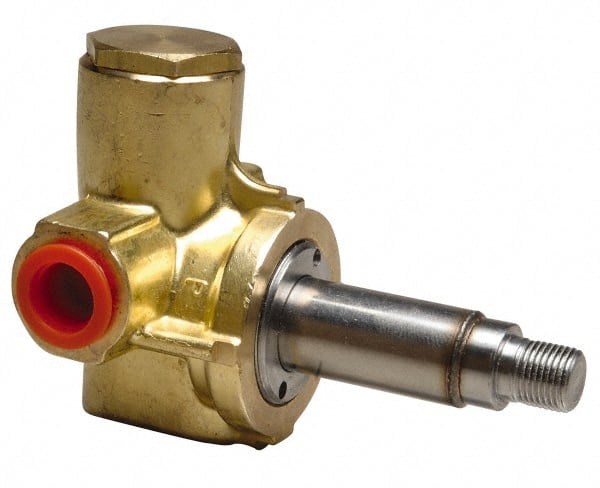

PARKER 71215SN1KN00 Skinner Solenoid Valve Body 2-way direct acting

Product Description

The Parker 71215SN1KN00 Skinner solenoid valve body is a two-way direct acting valve designed for various applications. It operates effectively under medium to high pressures and flow conditions, making it suitable for air, water, light oil, and inert gas. The valve features a robust stainless steel body and uses NBR seal material for enhanced durability.

• Direct acting valve design
• Compatible with air, water, light oil, and inert gas
• Stainless steel construction for improved reliability

Product Highlights

This valve functions as normally closed and supports versatile mounting positions, ideally in a vertical orientation.

Product Information

Standard Information

• Brand: Parker
• Sub Brand: Skinner

Technical Specifications

• MPN: 71215SN1KN00
• Number Of Ports/Ways: 2-Way
• Actuation: Direct Acting
• Configuration: Normally Closed
• Media: Air, Water, Light Oil, Inert Gas
• Minimum Operating Pressure: 0 PSI
• Pressure Rating: 275 PSI for Air/Inert Gas, Water, Light Oil
• Maximum Media Temperature: 185 °F
• Orifice Size: 3/32 inches
• Body Material: 430F Stainless Steel
• Seal Material: NBR
• Power Rating: 10 W
• Industry Standards: UL Listed, CSA Certified
• Width: 2.76 inches
• Height: 2.84 inches
• Other Physical Dimension: 1.62 inches Diameter
• Flow Coefficient (Cv): 0.18
• Port Size: 1/8 inches
• Connection Type: FNPT
• Valve Series: Parker Skinner 7000
• Valve Functional Type: 2 Way
