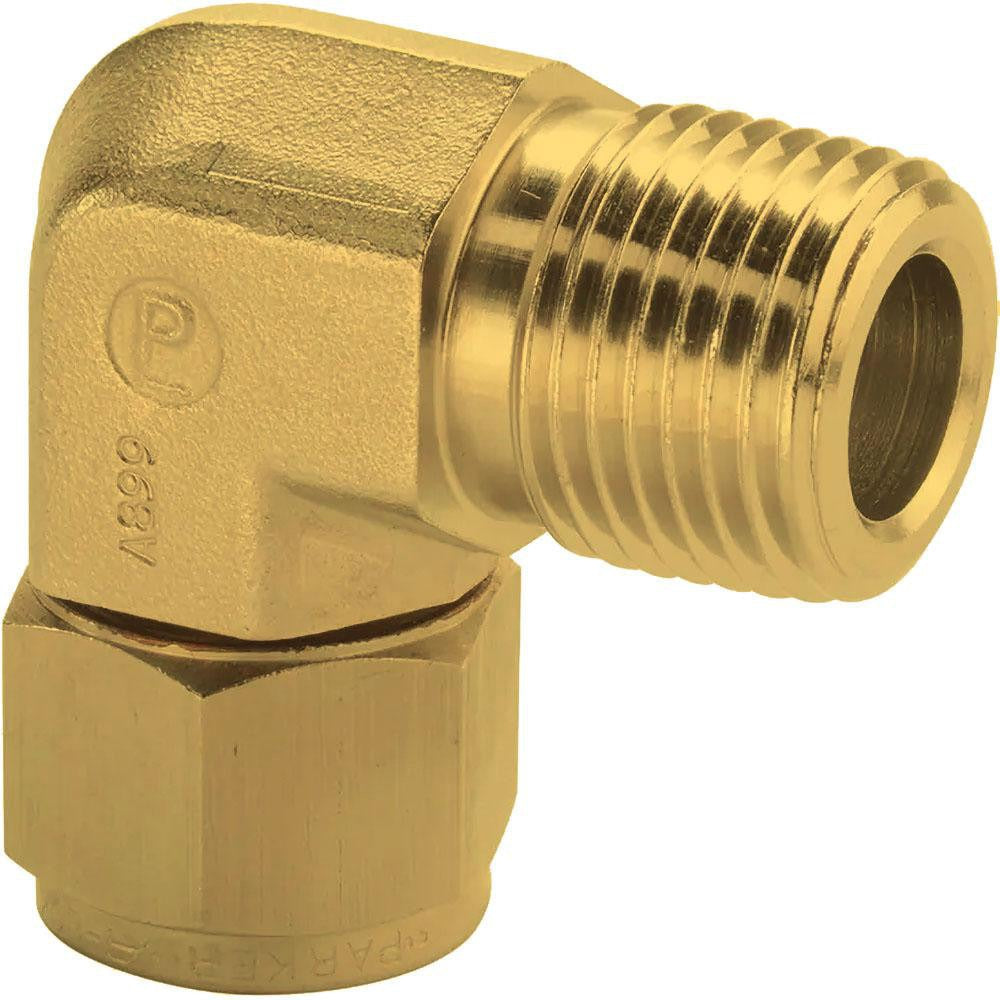

Parker 6MSEL2N-B Compression Male Elbow 1/8 Inch Mnpt

Product Description

The PARKER 6MSEL2N-B is a brass compression tube male elbow fitting designed to connect tubing to a male NPT threaded port at a 90-degree angle. It uses a compression-style connection on one end and a male pipe thread (MNPT) on the other, making it suitable for instrument, hydraulic, and fluid-control tubing runs where a directional change is needed. Rated to 2300 psi maximum working pressure, this fitting is built from brass for corrosion resistance and compatibility with a wide range of fluid media. It is sized for 1/8 inch thread and is typically installed by licensed plumbers, HVAC technicians, or instrumentation technicians working on pressurized tubing systems.

This fitting is used in applications requiring a reliable, leak-resistant 90-degree transition from compression tubing to a male NPT threaded component. Common install scenarios include instrument air lines, refrigeration or cooling system tubing connections, fuel and hydraulic lines, and other pressurized fluid circuits in both residential and light commercial settings. The compression-by-MNPT end configuration simplifies field assembly without the need for soldering or flaring tools.

Key Features

• 90-degree male elbow configuration routes tubing where straight connections are not practical
• Compression x MNPT end connections for tool-accessible, no-solder assembly
• Brass construction provides corrosion resistance across a wide range of compatible fluids
• Rated to 2300 psi maximum working pressure for use in high-pressure instrumentation and fluid systems
• 1/8 inch MNPT thread size fits standard NPT-threaded ports and components

Compatibility

Designed as an OEM-style and aftermarket replacement compression tube male elbow fitting for use with standard 1/8 inch MNPT threaded ports in pressurized fluid, instrumentation, and HVAC tubing systems. Cross-references Swagelok part number B-600-2-2.

Installation Notes

Installation should be performed by a qualified plumber, HVAC technician, or instrumentation technician familiar with pressurized tubing systems. Depressurize and isolate the system completely before removing or installing any compression fitting. Apply thread sealant or PTFE tape to the MNPT threads in accordance with applicable plumbing codes such as the IPC or IFGC. Do not overtighten the compression nut, as brass fittings can be damaged by excessive force.
