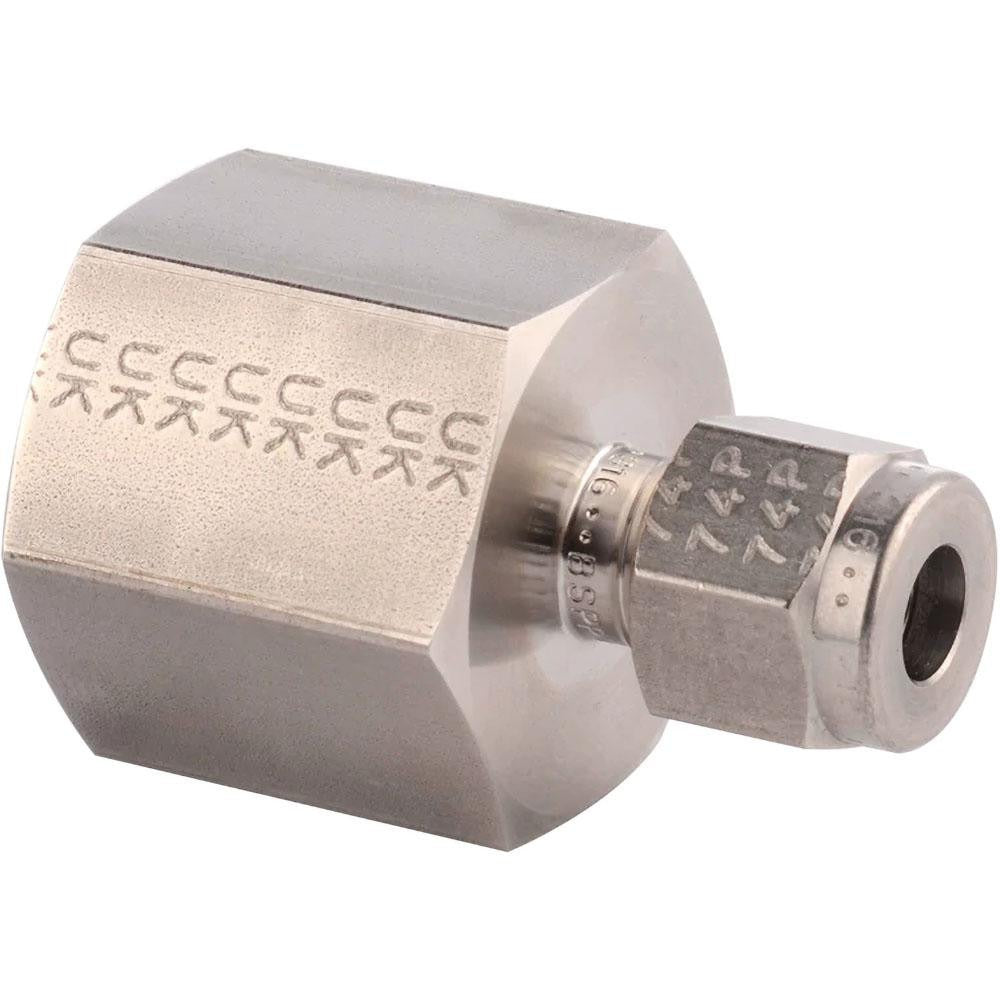

Parker 6FSC2N-316 Compression Tube Connector 1/8-27 Npt

Product Description

The PARKER 6FSC2N-316 is a stainless steel compression tube connector designed to join tubing to a female NPT threaded port. It features a compression end on one side and a 1/8-27 FNPT threaded end on the other, creating a secure, leak-resistant connection without welding or soldering. Rated to 6600 psi maximum working pressure and capable of handling temperatures from -425 degrees F to 1200 degrees F, this fitting is built for demanding service conditions. It is suited for instrumentation, process piping, and fluid or gas distribution systems where corrosion resistance and high-pressure performance are required.

This connector is used in applications where a compression tubing run must transition to a female NPT port on a valve, instrument, or manifold. Typical installations include process instrumentation lines, pneumatic control circuits, hydraulic systems, and high-purity fluid handling. The 316 stainless steel construction makes it appropriate for corrosive media and environments where carbon steel fittings are not suitable. Licensed plumbers, pipefitters, and instrumentation technicians commonly install this type of fitting in industrial and commercial settings.

Key Features

• Compression x FNPT end connections for tool-free tubing attachment on the compression side
• 1/8-27 NPT thread standard for reliable sealing to standard female NPT ports
• 316 stainless steel construction provides corrosion resistance for aggressive media and environments
• Maximum working pressure of 6600 psi suitable for high-pressure instrumentation and process lines
• Wide temperature range from -425 degrees F to 1200 degrees F covers cryogenic through elevated-heat service

Compatibility

Designed as an OEM-style compression-to-FNPT connector for instrumentation and process tubing systems using 1/8-27 NPT threaded ports.

Installation Notes

Installation should be performed by a qualified pipefitter or instrumentation technician following applicable codes such as ASME B31.3 for process piping. Depressurize and isolate the line completely before disassembly or installation. Verify that the compression ferrule is properly seated on the tubing before tightening the compression nut. Do not over-tighten the NPT threaded end; use an appropriate thread sealant rated for the service media and temperature range.
