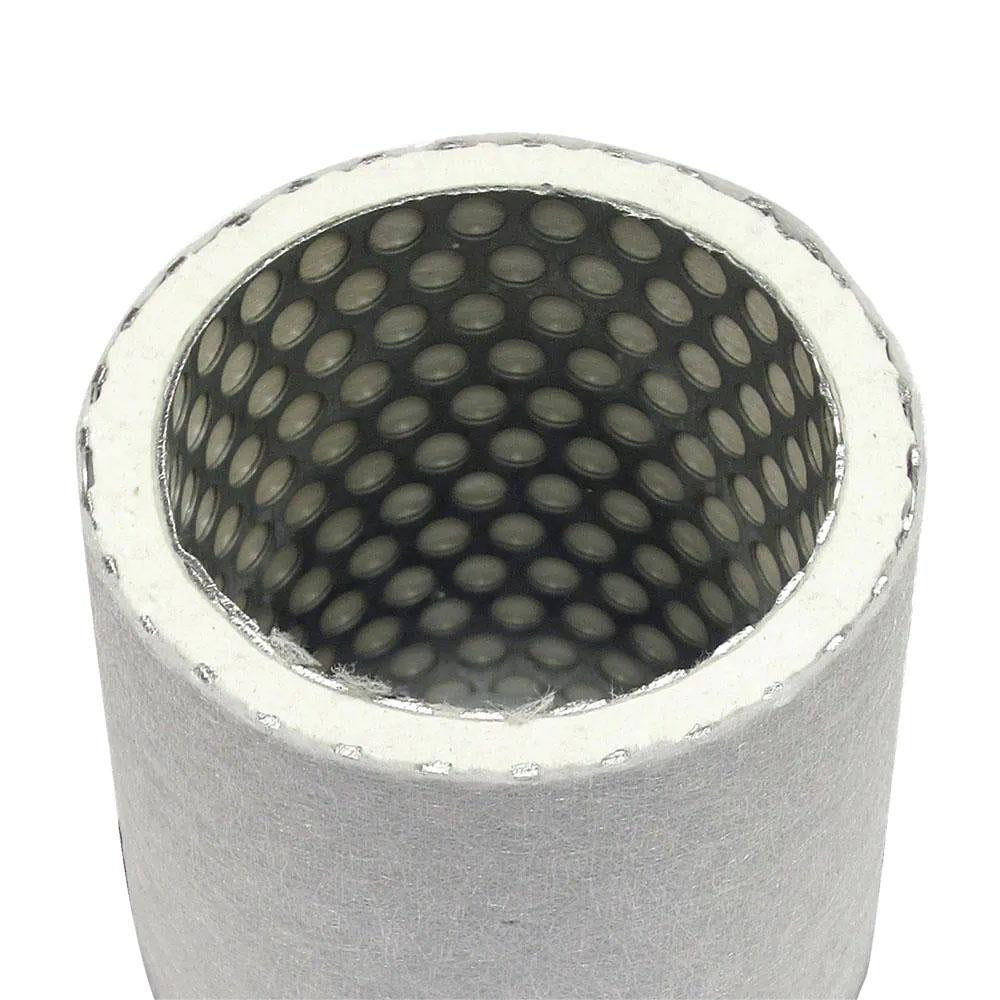

Parker 6CU35-280 X 1 Coalescing Filter Element Kit

Product Description

The PARKER 6CU35-280 X 1 is a coalescing filter element kit designed for compressed air filtration systems requiring ultra-fine particulate and aerosol removal down to 0.01 micron. Built with a microglass filter media, this element captures sub-micron oil aerosols, water droplets, and fine particulates before they reach downstream equipment or processes. Measuring 3.5 inches high and 28 inches wide, the element is rated for airflow between 800 and 1000 standard cubic feet per minute (SCFM). Licensed HVAC technicians and industrial maintenance professionals typically install this element as part of scheduled filter maintenance in compressed air treatment systems.

This coalescing filter element kit is designed for use with Parker Finite H-Series filter housings. It is well suited for industrial and commercial compressed air applications where clean, dry air is critical, including pneumatic controls, spray finishing, instrumentation air, and process air systems. The 0.01 micron rating makes it appropriate for high-purity air demands where oil carry-over or fine contamination cannot be tolerated. The kit ships as a single package quantity of one element.

Key Features

• 0.01 micron filtration rating removes sub-micron oil aerosols and fine particulates
• Microglass filter media provides high-efficiency coalescing performance
• Rated for 800 to 1000 SCFM airflow range
• Dimensions of 3.5 inches high by 28 inches wide for H-Series housing fitment
• Drop-in replacement element format simplifies routine maintenance

Compatibility

Designed for use with Parker Finite H-Series filter housings. Consult the housing model documentation to confirm element size and SCFM rating match before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system service. Depressurize and lock out the compressed air line before removing the existing element or opening the filter housing. Follow the housing manufacturer's service instructions for element seating and housing reassembly torque. Replace filter elements at manufacturer-recommended intervals or when differential pressure across the housing reaches the service threshold indicated on the housing gauge.
