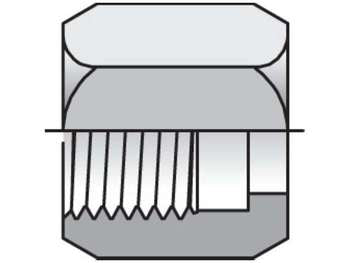

Parker 6BTX-SS Triple-Lok 37 Nut, Sleeve, Locknut BTX

Product Description

The Parker 6BTX-SS is a Triple-Lok 37 degree nut, sleeve, and locknut designed for high pressure tube connections. These fittings are widely used in industrial applications due to their reliable performance. The design allows for easy adaptation to various tube sizes, from six millimeters to thirty-eight millimeters. The Triple-Lok fittings can also serve as hose adapters when used without the nut and sleeve.

• Compatible with both inch and metric tubing
• Made from stainless steel for durability
• Standardized for hose and tube applications

Product Highlights

Customizable fittings suitable for various industrial uses and tube sizes.

Product Information

Standard Information

• Brand: Parker
• Part Number: 6BTX-SS

Technical Specifications

• End 1: 3/8 Inch
• Material: Stainless Steel
• Configuration Type: Nut, Sleeve, Locknut
• Configuration Sub-Type: Nut 37 Flare
• Series: 37 degree
• Tube Fitting/Adapter Type: 37 degree, Triple-Lok
• Trade Name: Triple-Lok
• Parker Division: Tube Fitting
• Parker Group: Fluid Connector
