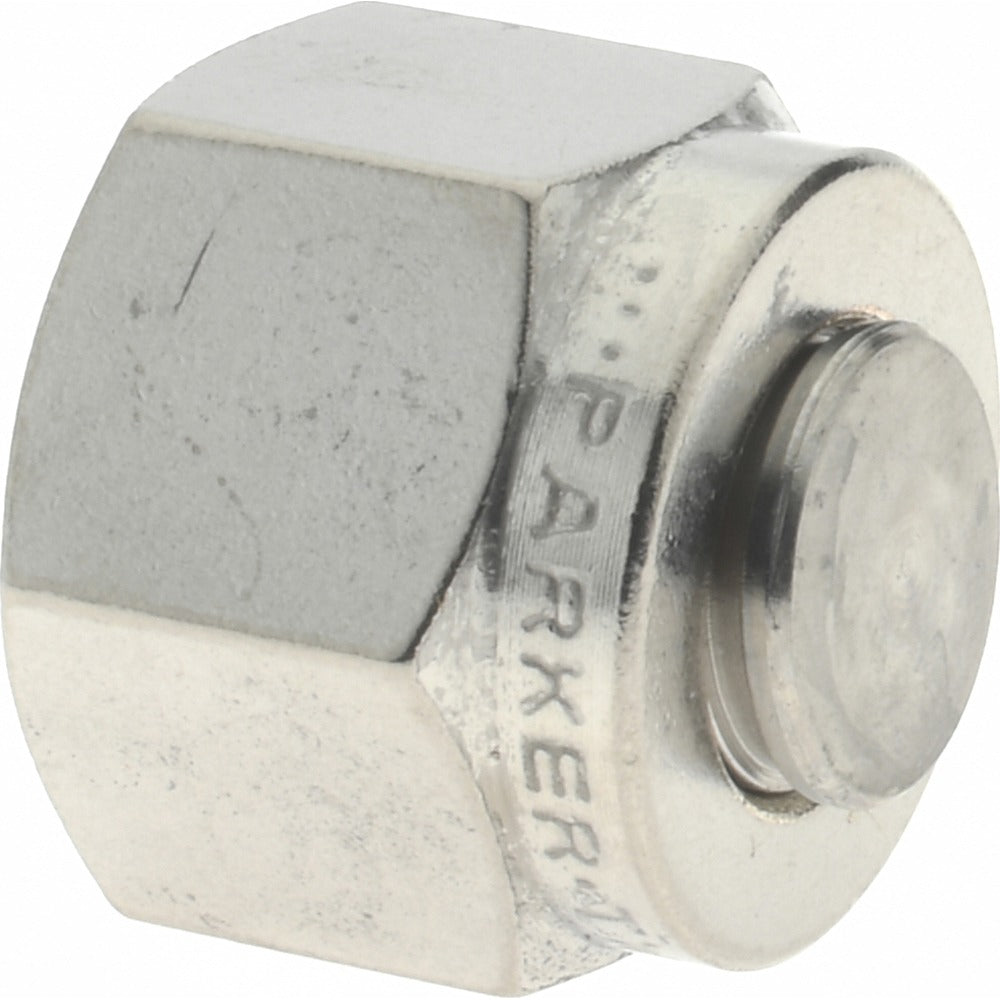

Parker 6BLP6-316 Compression Tube Plug 6600 Psi Ss

Product Description

The PARKER 6BLP6-316 is a compression tube plug designed to seal the end of a tubing line in fluid and gas distribution systems. Constructed from 316 stainless steel, it uses a compression-style end connection and threads to a 9/16-20 NPT size. With a maximum working pressure of 6600 psi and a temperature range of -425 degrees F to 1200 degrees F, this plug is suited for demanding service environments where corrosion resistance and pressure integrity are critical. Licensed pipefitters, plumbers, and instrumentation technicians are the primary installers of this type of fitting.

This compression tube plug is used in hydraulic, pneumatic, and process instrumentation tubing systems across both industrial and commercial applications. Its stainless steel construction makes it appropriate for corrosive media, high-purity applications, and extreme-temperature service. It is commonly installed wherever a tube run must be terminated or capped off during service, system modification, or future expansion provisions. The compact overall length of 0.56 inches keeps the fitting low-profile in tight plumbing arrangements.

Key Features

• 316 stainless steel construction for corrosion resistance in harsh or corrosive environments
• Maximum working pressure of 6600 psi for high-pressure fluid and gas systems
• Wide temperature range from -425 degrees F to 1200 degrees F
• Compression end connection for reliable, leak-resistant tube termination
• 9/16-20 NPT thread size for standard tubing system compatibility
• Compact overall length of 0.56 inches for use in tight or confined spaces

Compatibility

Designed as an OEM-style compression fitting plug for use in high-pressure tubing systems requiring a 9/16-20 NPT compression-style end cap in 316 stainless steel.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or qualified instrumentation technician in accordance with applicable codes. Depressurize and isolate the tubing system completely before removing or installing any compression fittings. Use the appropriate tube preparation tools to ensure a clean, square tube cut before seating the compression sleeve. Do not overtighten compression fittings, as this can deform the ferrule and compromise the seal.
