Parker 68PLP-8M-6G Push-to-connect Male Connector 300 Psi

Product Description

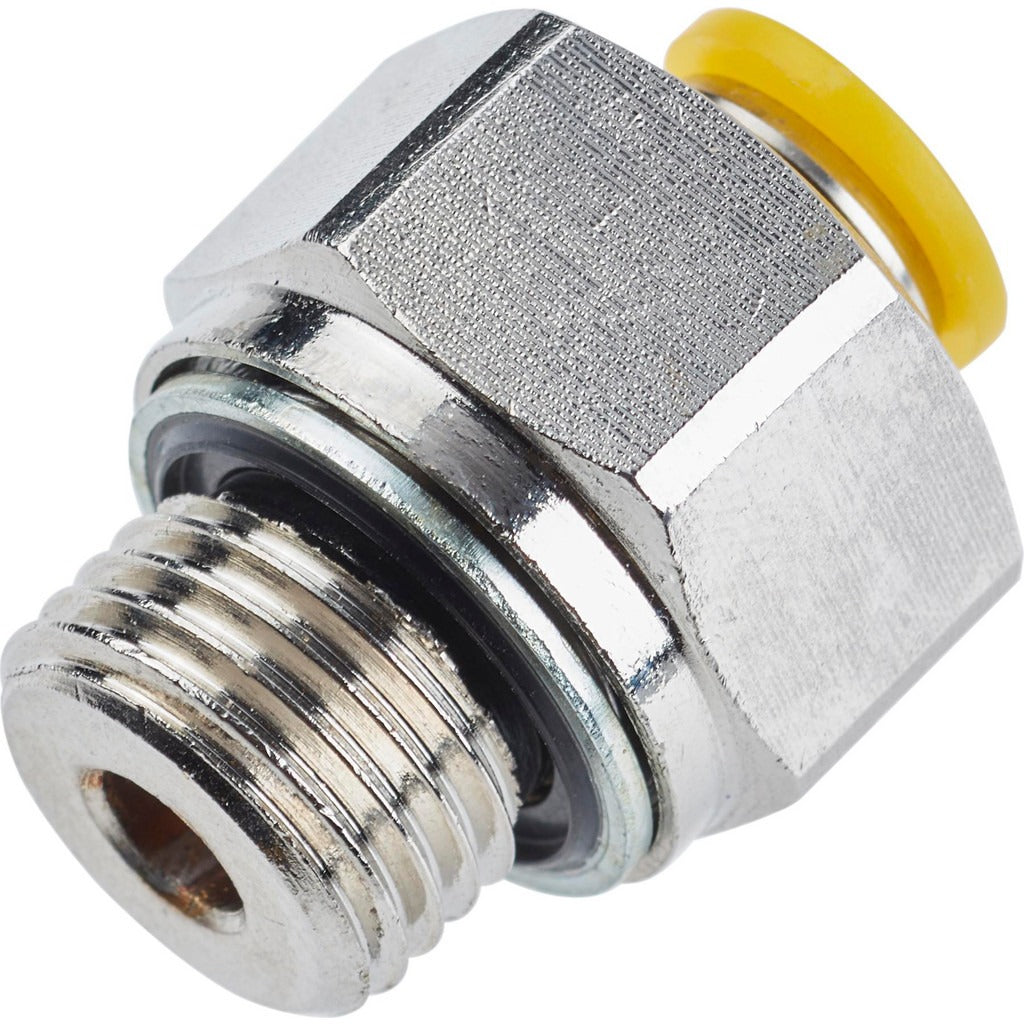

The PARKER 68PLP-8M-6G is a straight push-to-connect male connector fitting designed for tube-to-male tube connections in fluid and pneumatic systems. It accepts an 8mm outside diameter tube on the push-in end and threads into a 3/8 BSPP male port on the equipment side. The body is nickel-plated brass with a silicone-free grease internal seal, rated for a maximum working pressure of 300 psi across a temperature range of 0 degrees F to 200 degrees F. The silver body with yellow release button allows fast, tool-free tube insertion and controlled disconnection without cutting or ferrule preparation.

This fitting is suited for residential and light commercial pneumatic, refrigeration, and fluid-handling plumbing applications where a quick, reliable tube-to-threaded-port connection is required. It is commonly installed in compressed air lines, water treatment systems, and fluid distribution assemblies. The BSPP thread type makes it appropriate for systems built to British Standard parallel pipe specifications. Licensed plumbers, pipefitters, and fluid-system technicians are the typical installers.

Key Features

• Push-to-connect design allows tool-free tube insertion with yellow release button for controlled disconnection
• Nickel-plated brass body resists corrosion and provides durability in wet or humid environments
• Rated to 300 psi maximum working pressure for use in demanding fluid and pneumatic circuits
• Wide temperature range of 0 degrees F to 200 degrees F supports diverse application environments
• Silicone-free grease internal seal meets requirements for silicone-sensitive systems
• UL94 V-0 flame resistance rating on internal components

Compatibility

Designed as an OEM-style push-to-connect fitting for systems using 8mm outside diameter tubing with a 3/8 BSPP threaded male port connection.

Installation Notes

Installation is performed by licensed plumbers or pipefitters qualified to work on pressurized fluid or pneumatic systems. Depressurize and drain the system completely before removing or installing any fitting. Ensure tube ends are cut cleanly and squarely with no burrs before insertion to achieve a leak-free seal. Verify that the receiving port thread standard is BSPP before installation, as BSPP is not interchangeable with NPT threads.
