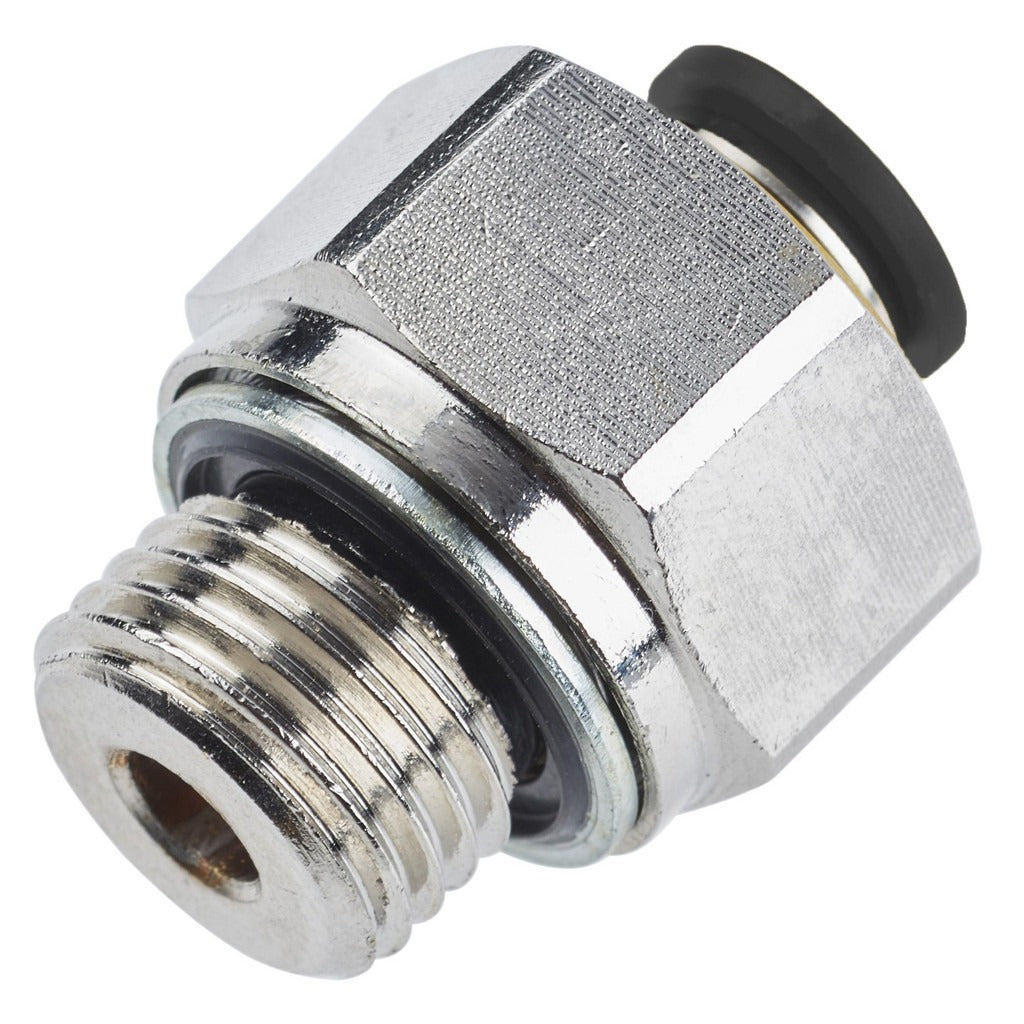

Parker 68PLP-8-8G Male Connector Push-to-connect 1/2 in

Product Description

The PARKER 68PLP-8-8G is a straight male connector push-to-connect tube fitting designed for quick, tool-free tube connections in fluid and pneumatic systems. Constructed from nickel-plated brass, it accepts 1/2-inch OD tubing on one end and terminates in a 1/2-inch BSPP male thread on the other. Rated to 300 psi maximum working pressure and suitable for temperatures from 0 degrees F to 200 degrees F, this fitting is built for demanding service environments. The release button is made from black flame-resistant material compliant with the UL94 V-0 standard, adding a layer of safety in installations near heat sources. Plumbers, pipefitters, and pneumatic system technicians are the primary installers.

This fitting is used in residential and light commercial plumbing, pneumatic lines, and fluid transfer systems where BSPP-threaded ports are present. The push-to-connect design eliminates the need for ferrules, compression sleeves, or additional tooling during installation, making it well suited for service work and panel builds where speed and repeatability matter. It is appropriate for use with compatible 1/2-inch OD tubing in systems that fall within the rated pressure and temperature limits.

Key Features

• Push-to-connect design accepts 1/2-inch OD tubing without ferrules or additional fittings
• Nickel-plated brass construction resists corrosion and wear
• 300 psi maximum working pressure rating
• Operating temperature range: 0 degrees F to 200 degrees F
• 1/2-inch BSPP male thread for compatibility with metric-standard ported equipment
• UL94 V-0 flame-resistant release button material

Compatibility

Designed for use with 1/2-inch OD tubing in pneumatic and fluid systems utilizing 1/2-inch BSPP male-threaded ports, within the rated pressure and temperature limits stated for this fitting.

Installation Notes

Installation is performed by licensed plumbers, pipefitters, or pneumatic technicians. Depressurize and isolate the system completely before removing or installing any fitting. Ensure tubing is cut cleanly and squarely, and that the tube end is free of burrs before inserting into the push-to-connect port to achieve a proper seal. To release the tube, press the green release collar inward while pulling the tube out; do not use excessive force on the collar.
