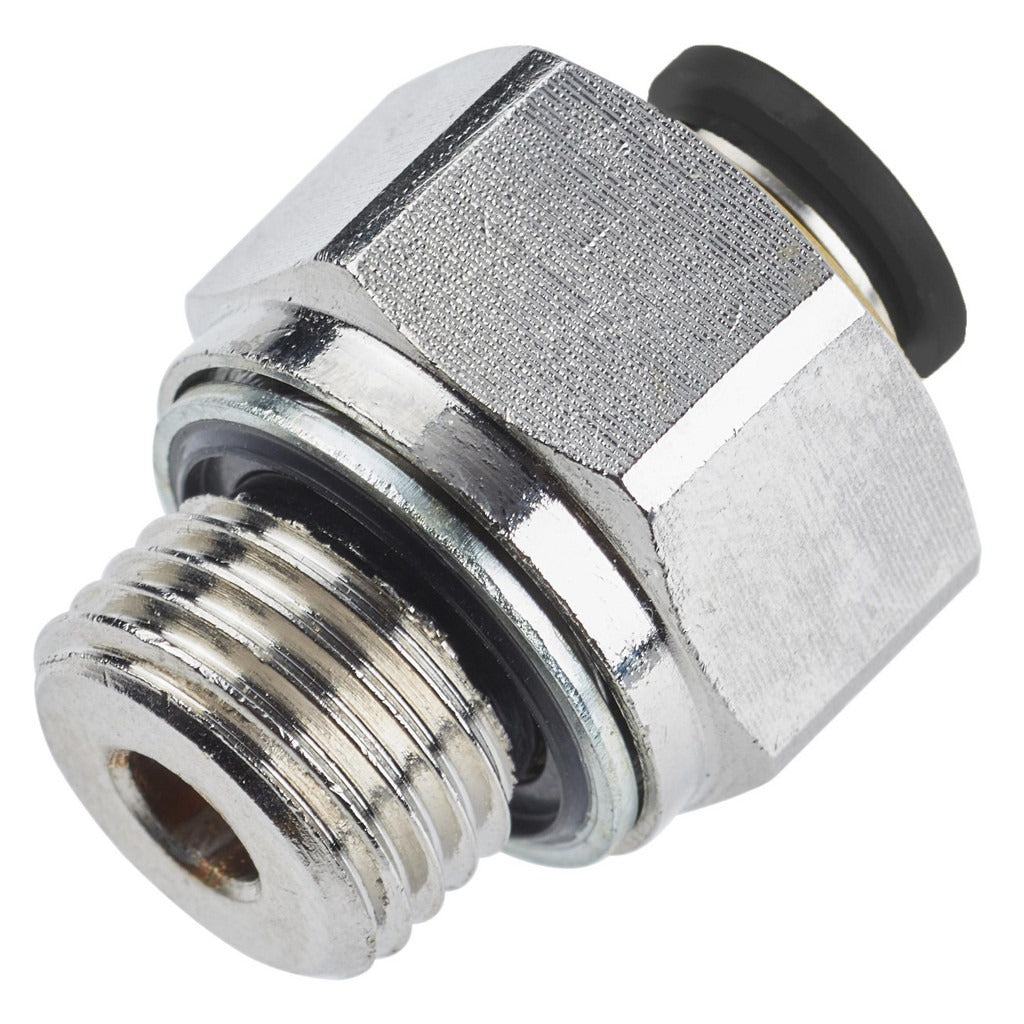

Parker 68PLP-6-8G Push-to-connect Male Connector 3/8 Od

Product Description

The PARKER 68PLP-6-8G is a push-to-connect tube-to-male fitting in a straight male connector configuration. It accepts 3/8-inch OD tubing on the push-to-connect end and a 1/2-inch BSPP male thread on the opposite end. The body is nickel-plated brass, rated to 300 psi maximum working pressure. Operating temperature range is 0 degrees F to 200 degrees F. The release button is a black, flame-resistant material that meets the UL94 V-0 standard. This fitting is installed by plumbers, HVAC technicians, and pipefitters working on fluid or pneumatic systems requiring a reliable, tool-free tube connection at a male-threaded port.

This fitting suits residential and light commercial applications where push-to-connect convenience is required at a BSPP-threaded male port. Typical scenarios include pneumatic control lines, instrumentation tubing, and fluid distribution assemblies. The straight configuration makes it appropriate for inline connections where the tubing and port share a common axis. The nickel-plated brass construction provides corrosion resistance suitable for air, water, and compatible fluid service within the rated pressure and temperature limits.

Key Features

• Push-to-connect end accepts 3/8-inch OD tubing without tools for fast field assembly
• Nickel-plated brass body provides corrosion resistance for air and water service
• Rated to 300 psi maximum working pressure
• Wide operating range from 0 degrees F to 200 degrees F
• Release button meets UL94 V-0 flame-resistant standard
• Straight male connector design for inline tube-to-port connections

Compatibility

Designed for use with 3/8-inch OD tubing on systems with 1/2-inch BSPP male-threaded ports. Suitable for pneumatic and compatible fluid systems operating within the 300 psi and 200 degrees F rated limits.

Installation Notes

Depressurize and isolate the system completely before installing or removing this fitting. Ensure tubing is cut cleanly and squarely, and that the OD is free of burrs or damage before inserting into the push-to-connect end. Thread engagement should follow the torque and sealant practices specified for BSPP connections under applicable codes such as those referenced in ISO 228 or project specifications. To release tubing, depress the release collar fully before pulling the tube free.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
