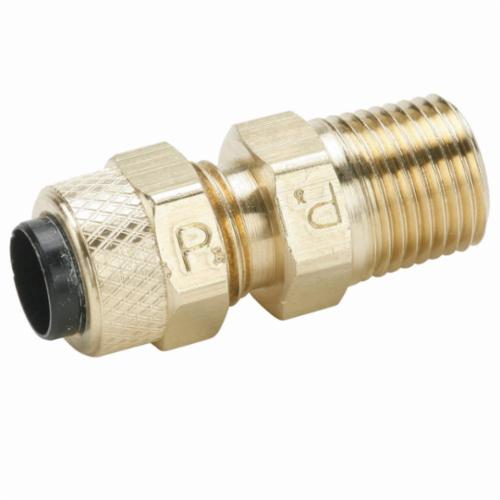

Parker 68P-8-6 Poly-Tite 68P Compression Connector 1/2 x 3/8 in Nominal Tube x Male Pipe

Product Description

The Parker 68P-8-6 Compression Connector is a reliable fitting designed for quick installations. The body, nut, and sleeve come fully pre-assembled, allowing for immediate use. It includes an acetal copolymer sleeve that resists creeping and stress from compression. This connector features excellent dimensional stability and UV resistance.

As the tightening process begins, the Poly-Tite nut rotates around the sleeve to prevent twisting and damage to the tubing. This fitting can be assembled and disassembled multiple times without losing integrity.

• Designed for use with polyethylene, nylon, and other thermoplastic tubing
• Knurled nut for easy hand tightening
• Brass sleeve option for soft metal tubing

Product Highlights

Ideal for various applications due to its durable construction and easy installation process.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Brand: Parker

Technical Specifications

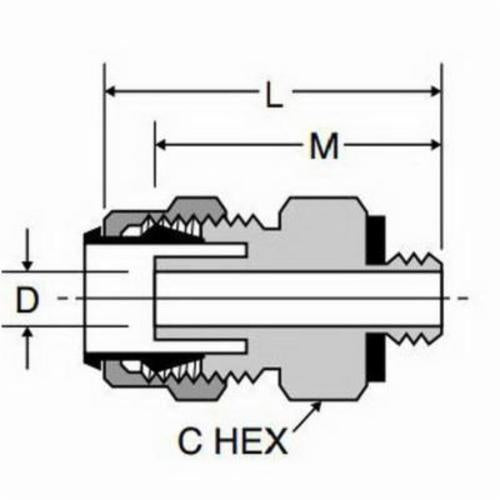

• End Style: Tube x Male Pipe
• Fitting/Connector Type: Adapter
• Hex Size: 11/16 in
• Length: 1.37 in
• Material: Brass
• Nominal Size: 1/2 x 3/8 in
• Pressure Rating: 150 psi
• Temperature Rating: 0 to 150 deg F
• Series: Poly-Tite 68P
