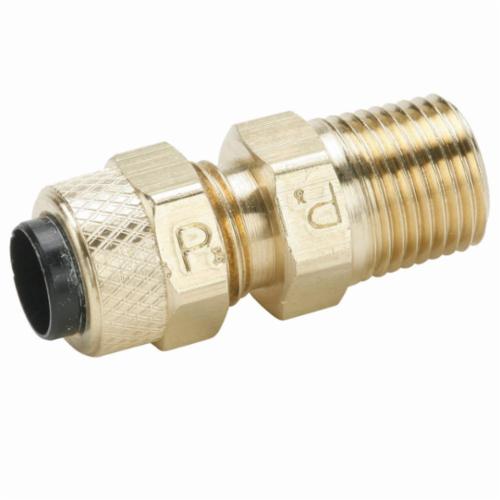

Parker 68P-4-4 Poly-Tite 68P Compression Connector, 1/4 in Nominal, Tube x Male Pipe End Style

Product Description

Parker's 68P-4-4 compression connector is made to streamline installation. This connector comes pre-assembled, which saves time during setup. It features a black acetal copolymer sleeve to resist stress and creep caused by compression. The design also allows for the sleeve to rotate during tightening to prevent tubing from twisting. This connector is suitable for repeated assembly and disassembly.

• Pre-assembled for quick installation
• Resistant to UV rays and dimensional changes
• Compatible with various types of tubing

Product Highlights

This connector is designed for use with polyethylene, nylon, and other thermoplastic tubing.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Part #: 57195

Technical Specifications

• End Style: Tube x Male Pipe
• Fitting/Connector Type: Adapter
• Hex Size: 9/16 in
• Length: 1-1/4 in
• Material: Brass
• Nominal Size: 1/4 in
• Pressure Rating: 150 psi
• Series: Poly-Tite 68P
• Temperature Rating: 0 to 150 deg F
