Parker 68HB-10-MI27 Brass Iso Port Adapter 5/8 X M27x2

Product Description

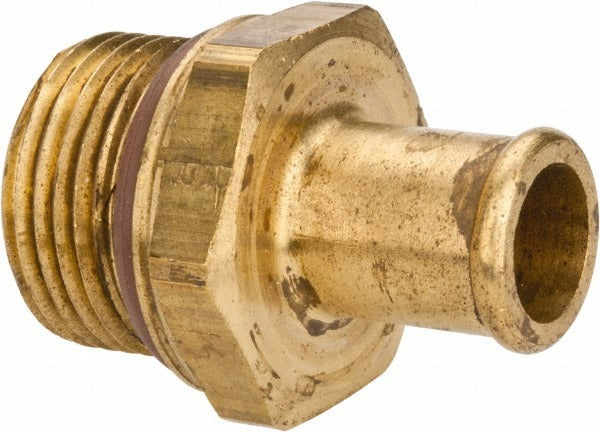

The PARKER 68HB-10-MI27 is a brass ISO port adapter designed to connect a 5/8 inch hose barb end to an M27x2 metric thread port. It is rated for working pressures up to 150 psi and a minimum working temperature of -40 degrees F. The adapter body is constructed from brass, and the sealing element uses Viton material for compatibility with a wide range of hydraulic and fluid system media. This fitting is installed by hydraulic technicians, plumbers, and fluid power mechanics working on equipment that mixes inch-size hose assemblies with metric-ported components.

This adapter is suited for industrial fluid systems, hydraulic equipment, and machinery that incorporates ISO-standard metric ports alongside standard hose barb connections. Typical applications include connecting flexible hose assemblies to hydraulic manifolds, cylinders, or pumps that use M27x2 metric port threads. It is appropriate for both stationary and mobile equipment where a reliable hose barb to metric port transition is required at moderate operating pressures.

Key Features

• Brass body construction offers corrosion resistance in fluid power and hydraulic applications
• Viton sealing material provides broad chemical and temperature compatibility
• Rated to 150 psi working pressure
• Minimum working temperature of -40 degrees F suits cold-environment installations
• Hose barb end accepts 5/8 inch hose; metric end threads to M27x2 ISO ports
• Meets ISO 6149-3 and SAE 2244-3 standards

Compatibility

Designed as an OEM-style replacement or service fitting for fluid power systems with ISO 6149-3 and SAE 2244-3 compliant M27x2 metric port connections paired with 5/8 inch hose barb assemblies.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter. Depressurize and isolate the hydraulic or fluid system completely before removing or installing any fittings. Inspect the mating port threads and hose barb connection for damage before assembly. Do not exceed the 150 psi rated working pressure for this adapter.
