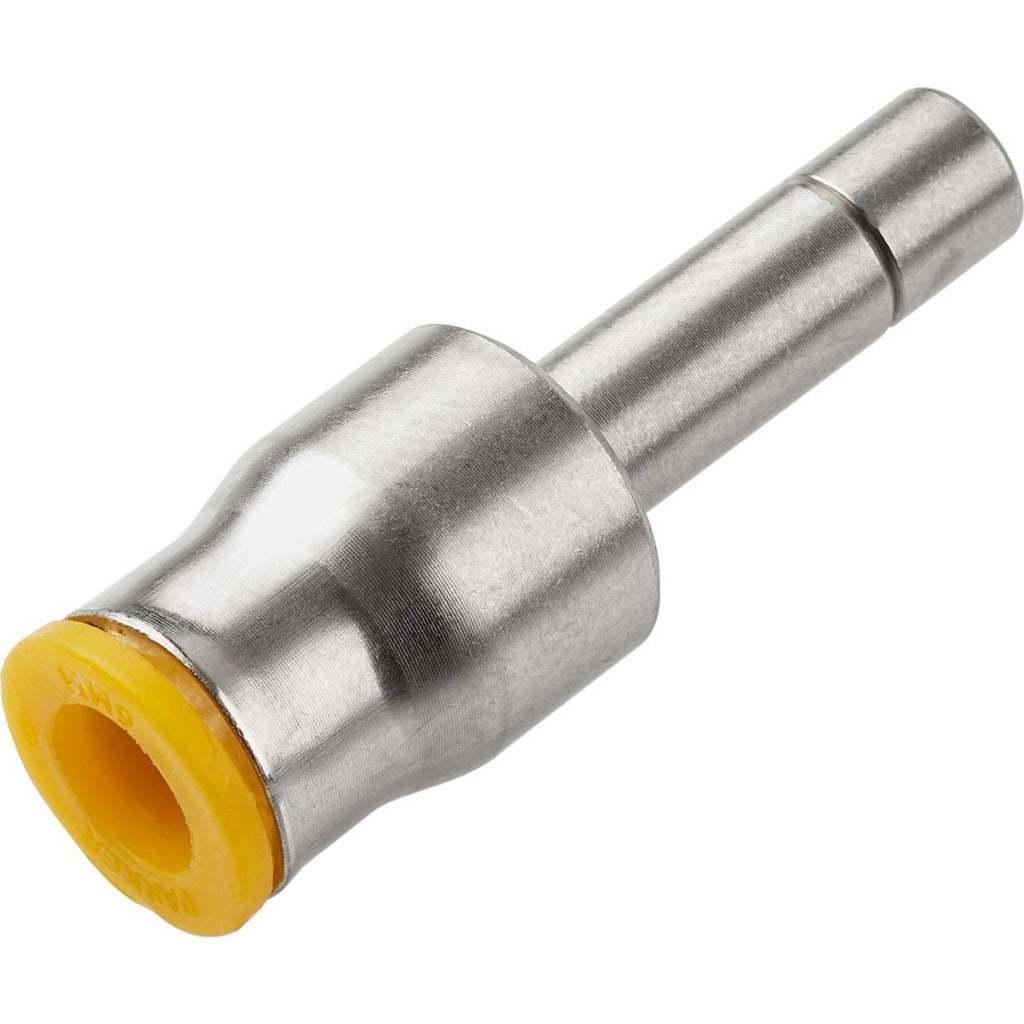

Parker 67PLP-8M-12M Reducer Straight Tube Fitting 300 Psi

Product Description

The PARKER 67PLP-8M-12M is a push-to-connect tube-to-stem reducer fitting in a straight configuration, manufactured from nickel-plated brass. It connects tubing with an 8 mm outside diameter to a stem port, reducing from one tube size to another without threaded tools or compression sleeves. Rated to 300 psi maximum working pressure, this fitting is designed for pneumatic and fluid-handling systems found in HVAC, refrigeration, and light industrial applications. Licensed technicians and plumbers install this fitting where quick, reliable tube connections are required in tight spaces or on equipment that benefits from tool-free assembly.

This fitting suits residential and light commercial applications where push-to-connect technology reduces installation time. The straight reducer design allows a direct in-line transition between tube sizes within a single run of tubing. Its silicone-free construction makes it appropriate for systems sensitive to silicone contamination, and the UL94 V-0 flame-resistance rating on internal components supports use in enclosures with fire-resistance requirements. HVAC and refrigeration technicians will find this fitting compatible with 8 mm OD tubing on the tube-side connection.

Key Features

• Push-to-connect design allows tool-free tube insertion and release via yellow release button
• Nickel-plated brass construction for corrosion resistance in fluid and pneumatic service
• 300 psi maximum working pressure rating
• Rated for use from 0 degrees F to 200 degrees F
• Silicone-free grease lubricant for compatibility with silicone-sensitive systems
• UL94 V-0 flame resistance compliance on applicable components

Compatibility

Designed for use with 8 mm outside diameter tubing on the tube-side connection in pneumatic and fluid-handling systems requiring a push-to-connect reducer straight fitting.

Installation Notes

Installation is performed by licensed HVAC technicians, plumbers, or qualified service professionals. Depressurize and de-energize the system fully before removing or installing any push-to-connect fitting. Ensure tube ends are cut cleanly and squarely with no burrs before inserting into the fitting to achieve a proper seal. To release the tube, press the yellow release button firmly while pulling the tube straight out.
