Parker 67PLP-8M-10M Reducer Straight Tube Fitting 300 Psi

Product Description

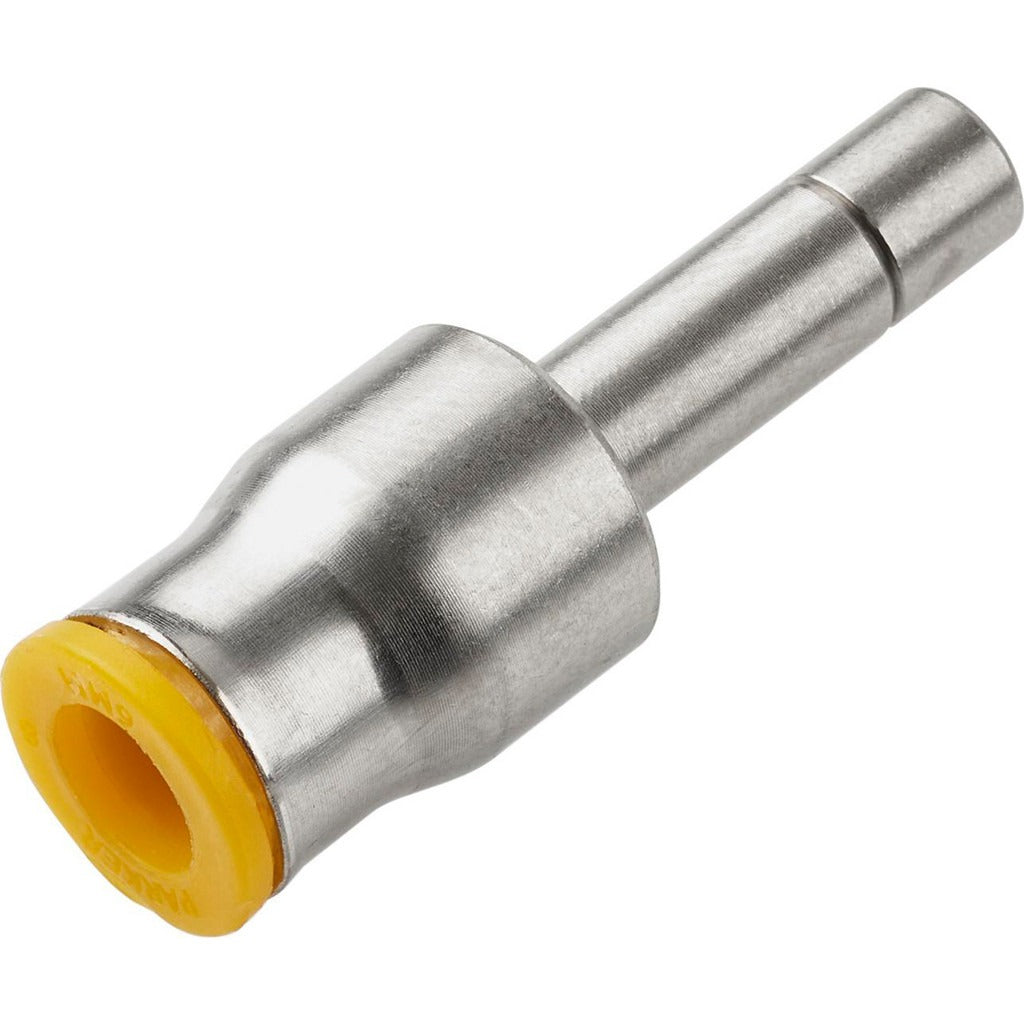

The PARKER 67PLP-8M-10M is a push-to-connect tube-to-stem reducer fitting in a straight configuration, designed for pneumatic and fluid system plumbing. Constructed from nickel-plated brass with a silicone-free grease lubricant, it meets the UL94 V-0 flame resistance standard and handles up to 300 psi working pressure. The yellow release button allows fast tube insertion and removal without tools, keeping installation time low. Licensed plumbers, HVAC technicians, and industrial maintenance technicians install this type of fitting in instrument air lines, pneumatic control circuits, and similar low-to-medium-pressure tubing systems.

This fitting connects an 8 mm outside diameter tube to a stem-style port, reducing between two different tube or port sizes in a straight run. It is suited for residential and light commercial pneumatic control applications, compressed air distribution, and inline plumbing where a compact straight reducer is needed. The push-to-connect design eliminates the need for ferrules, compression sleeves, or wrenches at the fitting itself, speeding up field assembly and service.

Key Features

• Push-to-connect design for tool-free tube insertion and one-handed release via yellow button
• Rated to 300 psi maximum working pressure
• Nickel-plated brass construction provides corrosion resistance for air and compatible fluid service
• Silicone-free grease lubricant suits applications where silicone contamination is a concern
• UL94 V-0 flame resistance rating on internal components
• Operating temperature range of 0 degrees F to 200 degrees F covers most HVAC and pneumatic control environments

Compatibility

Designed as an OEM-style replacement or new-installation straight reducer push-to-connect fitting for pneumatic tubing systems using an 8 mm outside diameter tube on the tube-connection end with a stem-style port on the opposing end.

Installation Notes

Installation is performed by licensed plumbers or HVAC technicians working on pneumatic or compressed-air control systems. Depressurize and isolate the line completely before removing or installing any fitting. Ensure tube ends are cut cleanly and squarely with a proper tube cutter and that the outside diameter is free of burrs, nicks, or ovality before inserting into the fitting. Verify that system working pressure does not exceed the 300 psi rated maximum under any operating or surge condition.
