Parker 67PLP-6M-8M Reducer Straight Tube Fitting 300 Psi

Product Description

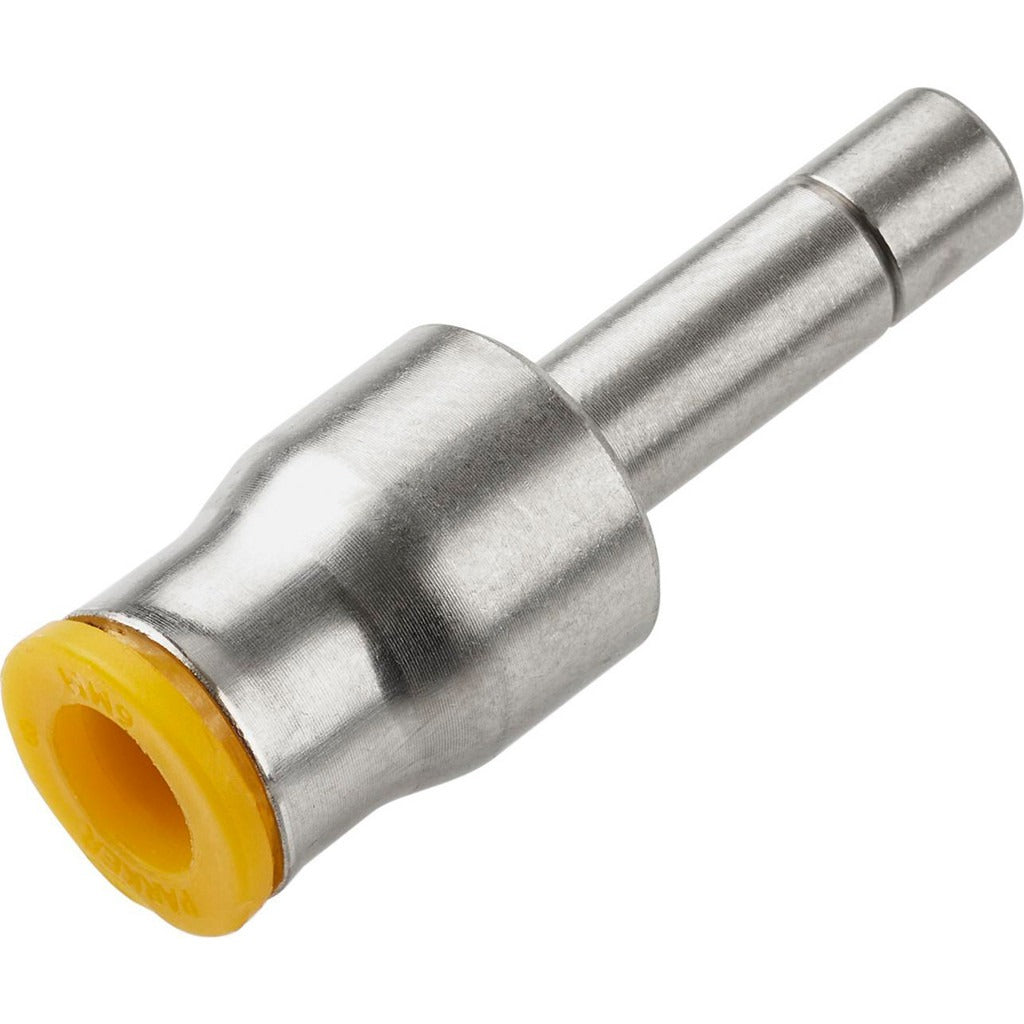

The PARKER 67PLP-6M-8M is a push-to-connect tube-to-stem reducer fitting in a straight configuration, designed for quick, tool-free connections in pneumatic and fluid-handling systems. Constructed from nickel-plated brass, this fitting reduces between a 6 mm outside-diameter tube and a larger stem connection. It is rated to 300 psi maximum working pressure and handles temperatures from 0 degrees F to 200 degrees F. The silver body features a yellow release button for one-handed disconnect. HVAC technicians, plumbers, and industrial service techs install these fittings where tubing size transitions are needed in tight spaces without soldering or compression tools.

This fitting suits residential and light commercial pneumatic control lines, instrumentation tubing, and fluid distribution circuits where a size reduction from a 6 mm OD tube to a stem-style port is required. Its push-to-connect design speeds up installation on equipment service calls and new construction alike. The fitting is silicone-free, making it compatible with systems and environments where silicone contamination must be avoided, such as paint booths or certain sensor assemblies.

Key Features

• Push-to-connect design allows tool-free tube insertion and single-button release
• Nickel-plated brass construction for corrosion resistance in damp or industrial environments
• 300 psi maximum working pressure rating
• Operating temperature range of 0 degrees F to 200 degrees F
• Silicone-free grease used internally, safe for silicone-sensitive applications
• UL94 V-0 flame resistance standard compliance

Compatibility

Designed as an OEM-style push-to-connect reducer for pneumatic and fluid-handling tubing systems using a 6 mm outside-diameter tube with a stem-style port connection.

Installation Notes

Installation is performed by qualified HVAC or plumbing technicians. Depressurize and isolate the system before disconnecting or installing any fitting. Insert tubing fully until it seats to ensure a leak-free connection; always verify with a system pressure test after installation. To release the tube, press the yellow button fully while pulling the tube straight out.
