Parker 67PLP-6M-10M Reducer Straight Tube Fitting 300 Psi

Product Description

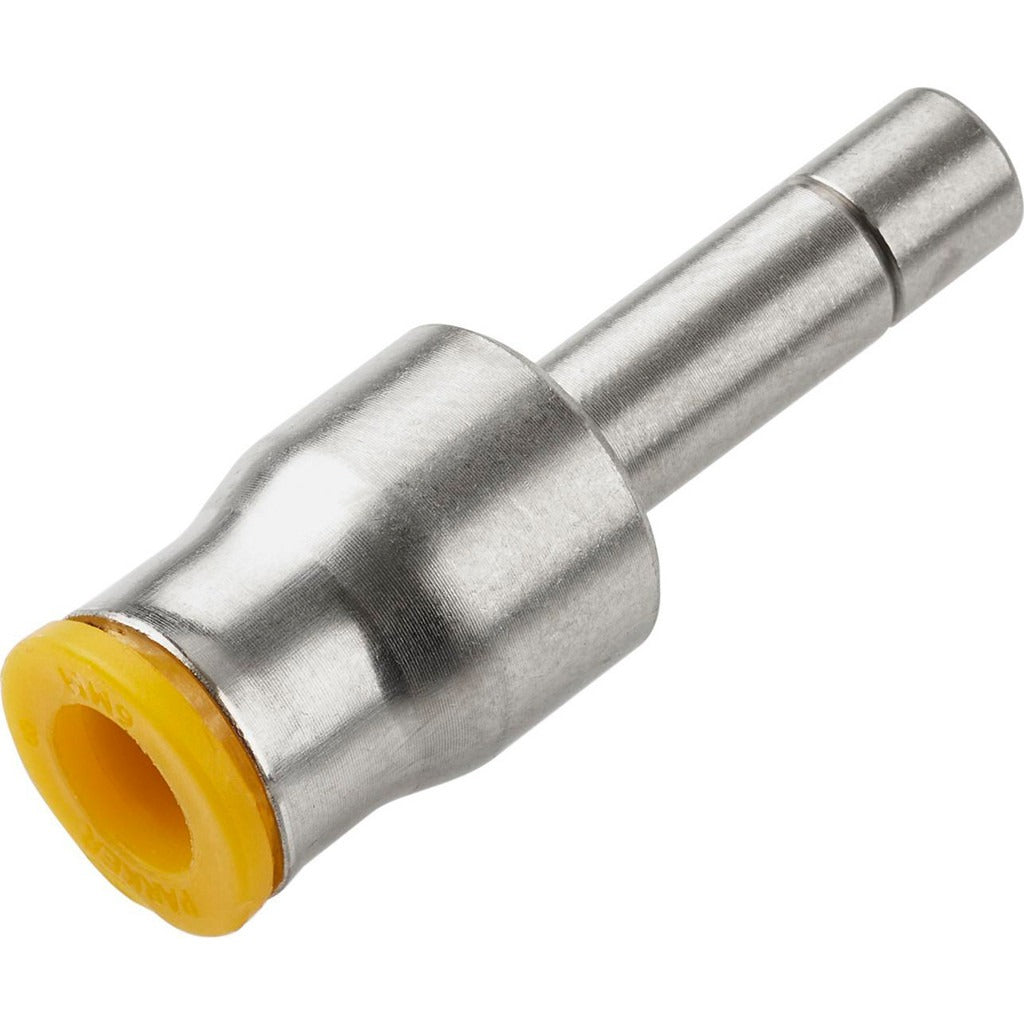

The PARKER 67PLP-6M-10M is a push-to-connect tube-to-stem reducer fitting in a straight configuration, constructed from nickel-plated brass. It connects a 6 mm outside diameter tube to a stem port, reducing tubing size inline without additional tools beyond a clean, square-cut tube end. Rated to 300 psi maximum working pressure, it operates across a temperature range of 0 degrees F to 200 degrees F. The fitting uses silicone-free grease and meets the UL94 V-0 flame resistance standard. It is typically installed by HVAC technicians, plumbers, or pneumatic system technicians in fluid or air line assemblies requiring a size transition at a stem connection point.

This fitting is suited for residential and light commercial applications where a tube-to-stem push-to-connect interface is required. It is appropriate for pneumatic control lines, HVAC refrigerant-side accessory tubing, and similar low-to-medium pressure fluid conveyance systems. The straight reducer body keeps the connection inline, reducing the need for additional adapters or fittings in tight spaces. The yellow release button allows the tube to be disconnected and reconnected quickly during servicing without specialized disconnect tools.

Key Features

• Push-to-connect design accepts 6 mm outside diameter tubing at the tube port end
• Nickel-plated brass body provides corrosion resistance in typical HVAC and pneumatic environments
• 300 psi maximum working pressure rating
• Rated for service from 0 degrees F to 200 degrees F
• Silicone-free grease construction suits sensitive system environments
• UL94 V-0 flame resistance compliance
• Yellow release button enables tool-free tube removal and reinstallation

Compatibility

Designed as an OEM-style push-to-connect tube-to-stem reducer fitting for use in pneumatic, HVAC control, or fluid conveyance systems requiring a straight inline size-reducing connection at a stem port.

Installation Notes

Install by a qualified HVAC technician or plumber following applicable system codes. Depressurize and isolate the line before removing or installing any fitting. Ensure the tube end is cut square and free of burrs before inserting into the push-to-connect port. Do not exceed the rated working pressure or temperature limits stated for this fitting.
