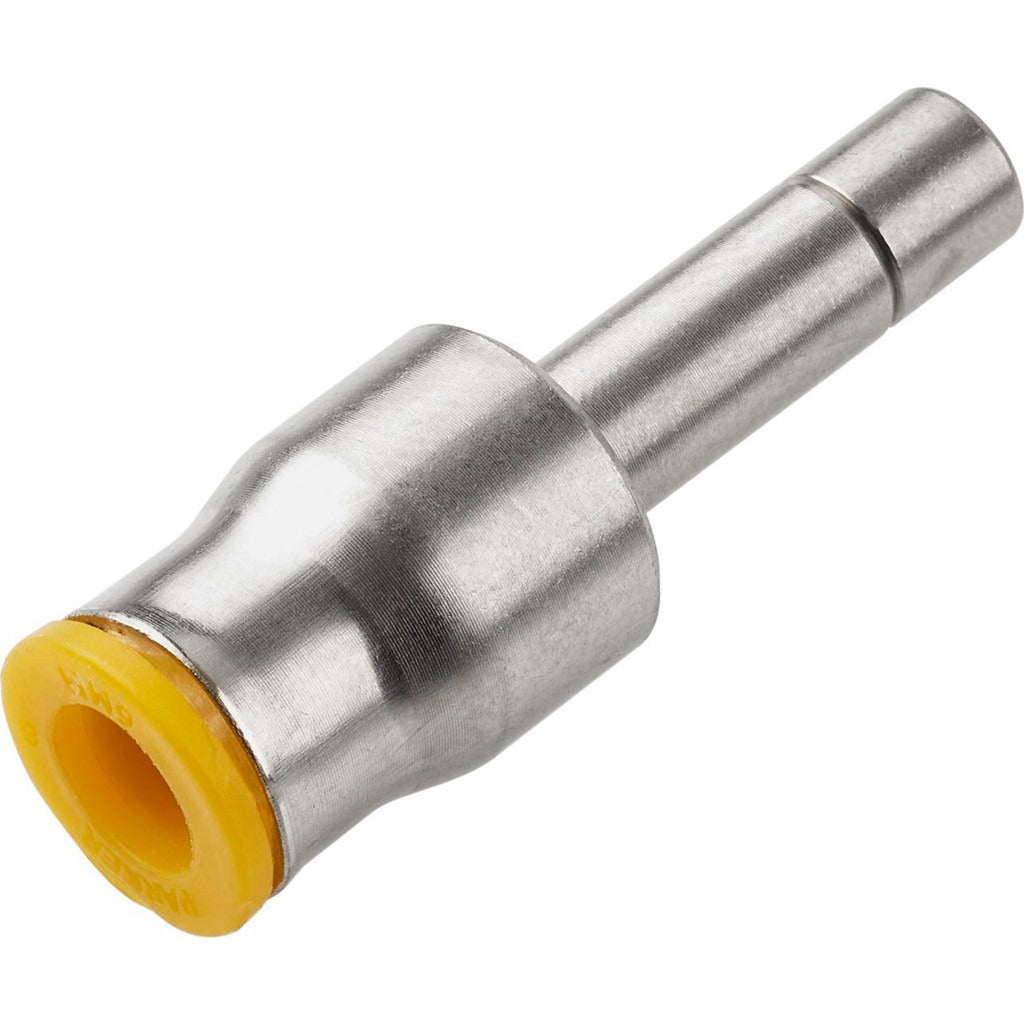

Parker 67PLP-10M-12M Reducer Straight Tube Fitting

Product Description

The PARKER 67PLP-10M-12M is a push-to-connect reducer straight tube fitting designed for tube-to-stem connections in pneumatic and fluid control systems. Constructed from nickel-plated brass, it connects tubing with a 10 mm outside diameter to a stem port, reducing to the next size in a straight inline configuration. Rated for up to 300 psi maximum working pressure, it handles a temperature range of 0 degrees F to 200 degrees F. The silver body features a yellow release button for quick tube removal without tools. Installation and disassembly are fast, making it a practical choice for service and maintenance work in HVAC controls, pneumatic panels, and related equipment.

This fitting is suited for use in residential and light commercial pneumatic control systems, refrigeration equipment, and compressed-air plumbing where a straight reducer connection is required. The push-to-connect design allows field technicians to make secure, leak-resistant connections without ferrules, sleeves, or thread sealant on the tube side. It is typically installed by HVAC technicians, refrigeration mechanics, and plumbers working on control-line and pneumatic-tubing applications.

Key Features

• Push-to-connect design allows tool-free tube insertion and one-handed release via yellow button
• Nickel-plated brass construction for corrosion resistance in pneumatic and fluid service
• Rated to 300 psi maximum working pressure
• Operates from 0 degrees F to 200 degrees F
• Silicone-free grease — compatible with sensitive sensor and pneumatic environments
• Meets UL94 V-0 flame resistance standard

Compatibility

Designed as an OEM-style push-to-connect tube fitting for pneumatic and fluid control applications using 10 mm outside diameter tubing on the tube side with a stem port connection.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified mechanics. Before servicing any pneumatic or pressurized line, depressurize and lock out the system in accordance with applicable safety procedures. Ensure tubing is cut cleanly and squarely with no burrs before inserting into the push-to-connect port. To remove tubing, press the yellow release button fully while pulling the tube straight back — do not twist or force.
