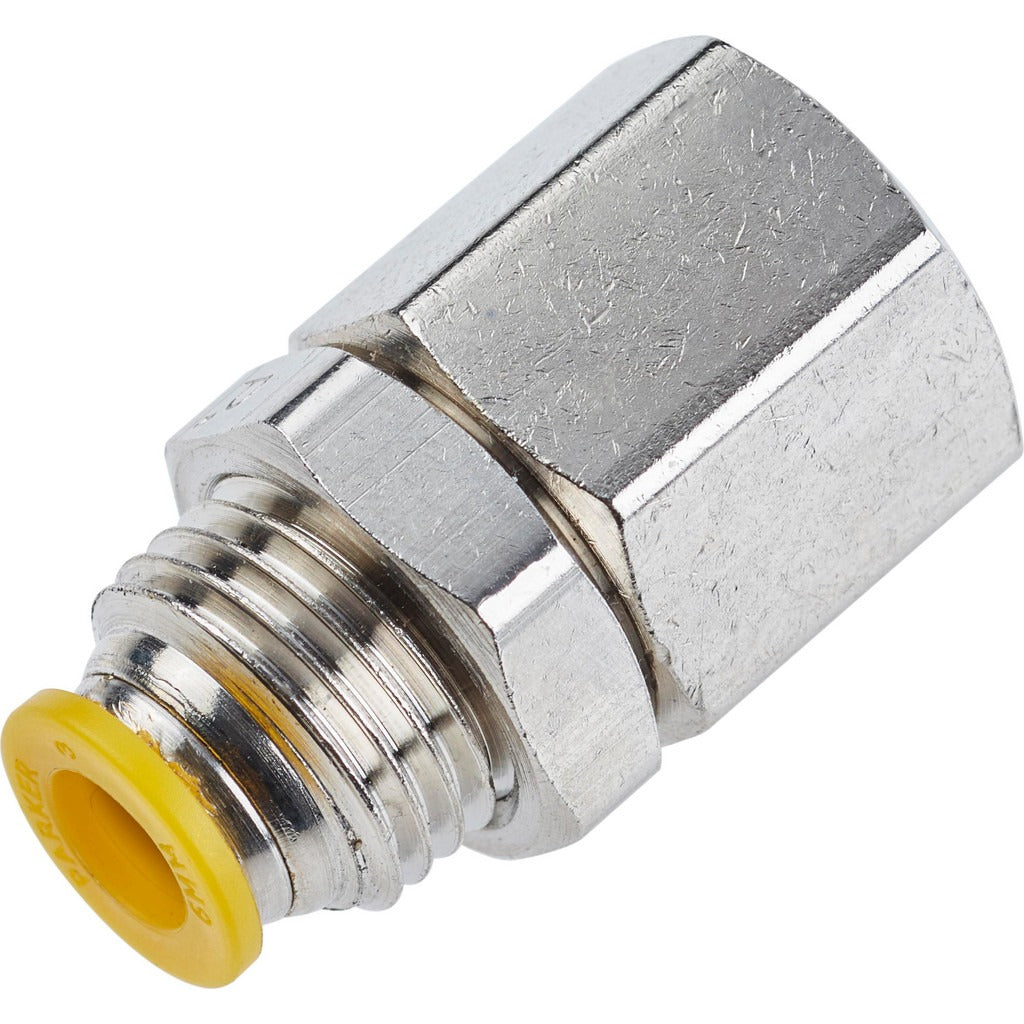

Parker 66PLPBH-10M-6G Female Bulkhead Fitting 10mm 300 Psi

Product Description

The PARKER 66PLPBH-10M-6G is a push-to-connect female bulkhead tube fitting designed for straight inline connections through panels or enclosures. Constructed from nickel-plated brass with a silver finish and yellow release button, it accepts a 10mm outside-diameter tube and is rated to 300 psi maximum working pressure. The BSPP threaded female end provides a secure, leak-resistant connection in pneumatic and fluid distribution systems. Operating temperature range spans 0 degrees F to 200 degrees F. This fitting is silicone-free and meets the UL94 V-0 flame resistance standard, making it suitable for environments where flammability ratings are specified. Licensed trades and fluid-system technicians handling pneumatic lines or compressed-air distribution are the primary installers.

This fitting is used in panel-mount or bulkhead-mount applications where a tube line must pass through a wall, bracket, or enclosure. Typical installations include pneumatic control systems, compressed-air distribution panels, and fluid-handling assemblies in commercial and industrial settings. The push-to-connect design allows rapid tube insertion and removal without additional tooling, reducing assembly time in tight spaces. The yellow release button allows easy tube disconnection for service or reconfiguration. BSPP thread engagement requires a corresponding BSPP female port on the mating component.

Key Features

• Push-to-connect design accepts 10mm OD tube without ferrules or compression hardware
• Female bulkhead configuration for panel or enclosure pass-through mounting
• Rated to 300 psi maximum working pressure
• Nickel-plated brass construction for corrosion resistance
• UL94 V-0 flame resistance rating; silicone-free grease used in assembly
• Operating range of 0 degrees F to 200 degrees F
• BSPP thread type for compatibility with corresponding metric-standard ports

Compatibility

Designed for use with 10mm outside-diameter tubing in pneumatic and compressed-air systems using BSPP-threaded ports. Verify thread type and tube OD before installation, as BSPP is not interchangeable with NPT or BSPT threads.

Installation Notes

Depressurize and isolate the pneumatic or fluid line completely before removing or installing any fitting. BSPP threads are parallel and typically require thread sealant tape or compound to achieve a leak-free seal; do not over-tighten, as nickel-plated brass fittings can crack under excessive torque. Insert tube straight and fully into the push-to-connect socket until it seats; to release, press the yellow button inward while pulling the tube. Follow applicable compressed-air system codes and the equipment manufacturer's installation guidelines.
