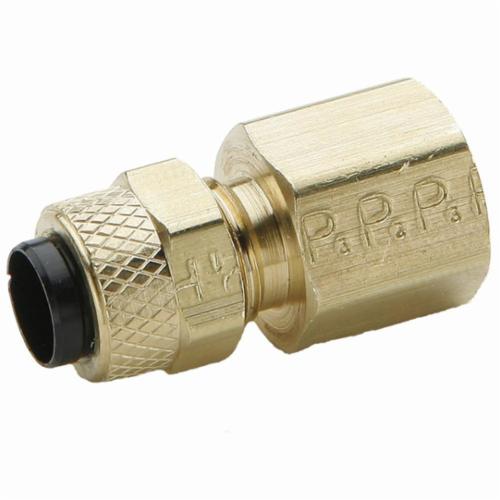

Parker 66P-8-6 Poly-Tite 66P Compression Connector, 1/2 x 3/8 in Nominal

Product Description

The Parker Poly-Tite Compression Connector, MPN 66P-8-6, is designed for efficient installations. This fitting features a pre-assembled body, nut, and sleeve, ready for quick setup. The acetal copolymer sleeve is built to resist compression stress and provides excellent dimensional stability. Additionally, these nuts are designed to rotate during tightening to prevent twisting of the tubing, allowing for easy assembly and disassembly.

• Compatible with multiple types of tubing including polyethylene and nylon
• Brass material for enhanced durability
• Pressure rated at 150 psi

Product Highlights

This fitting is ideal for connecting tubes to female pipes, ensuring a reliable and leak-free seal in various applications.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Min Order Qty: 1

Technical Specifications

• Fitting/Connector Type: Adapter
• End Style: Tube x Female Pipe
• Hex Size: 13/16 in
• Length: 1.31 in
• Material: Brass
• Nominal Size: 1/2 x 3/8 in
• Pressure Rating: 150 psi
• Temperature Rating: 0 to 150 deg F
• Series: Poly-Tite 66P
